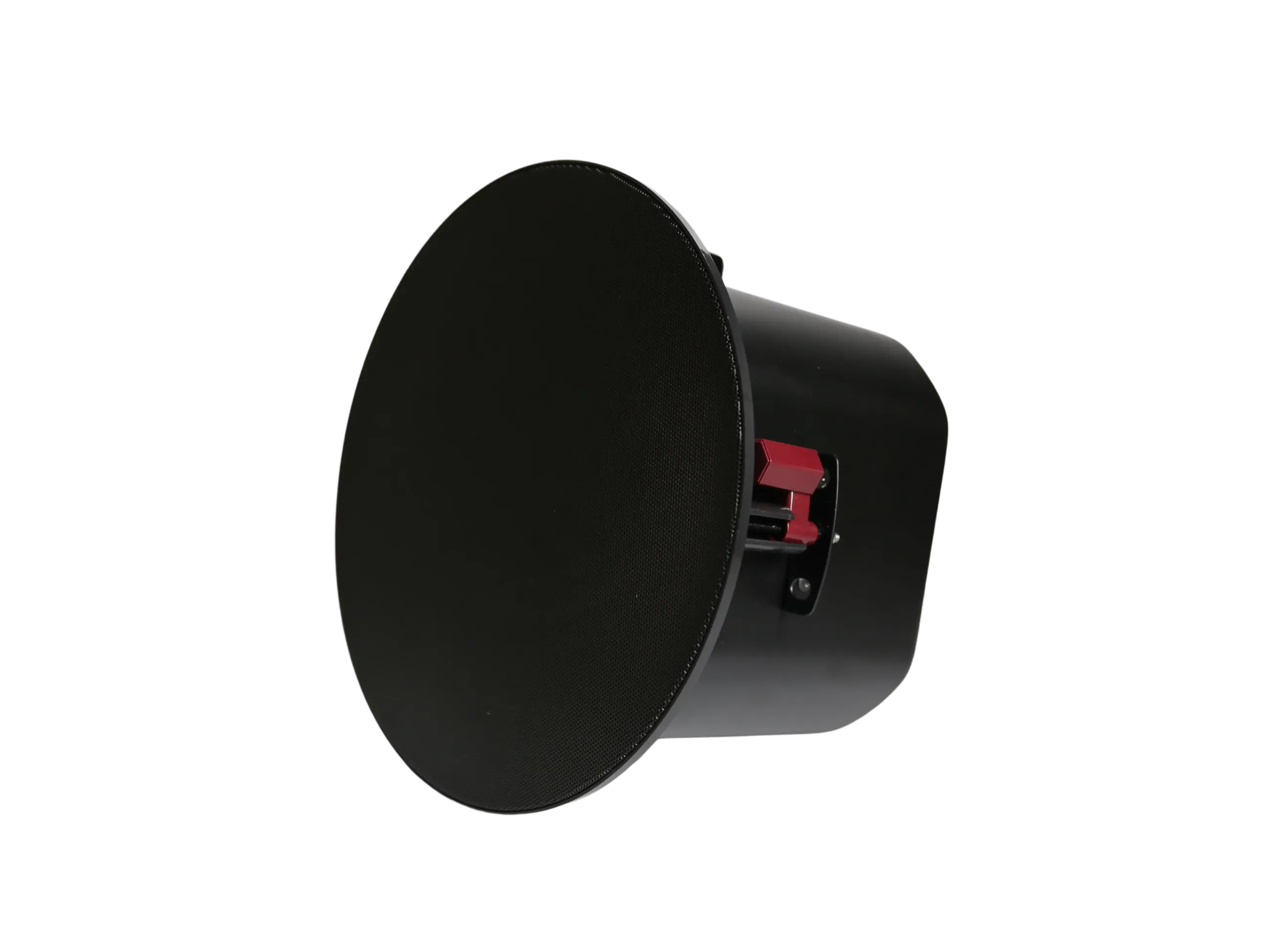

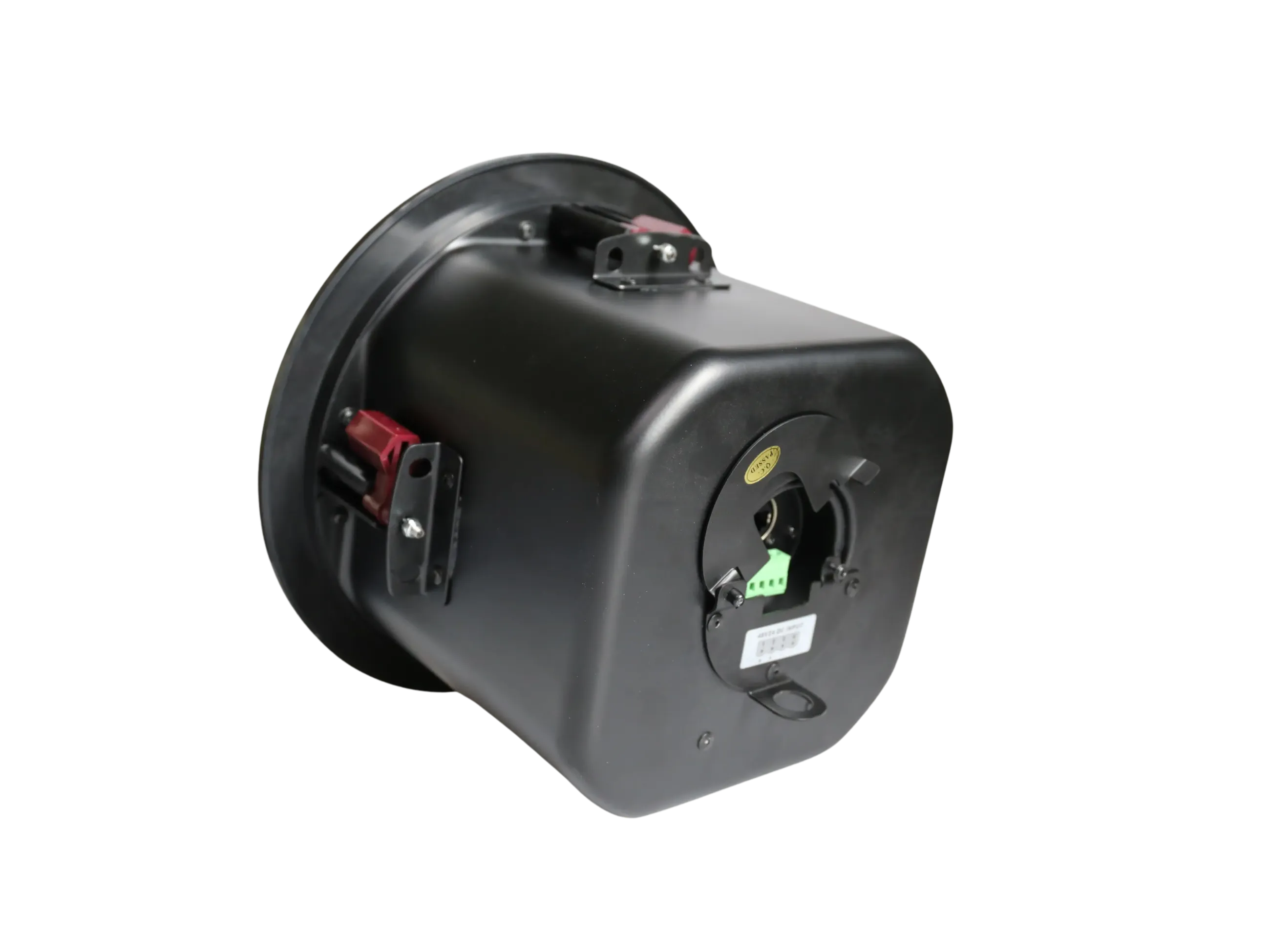

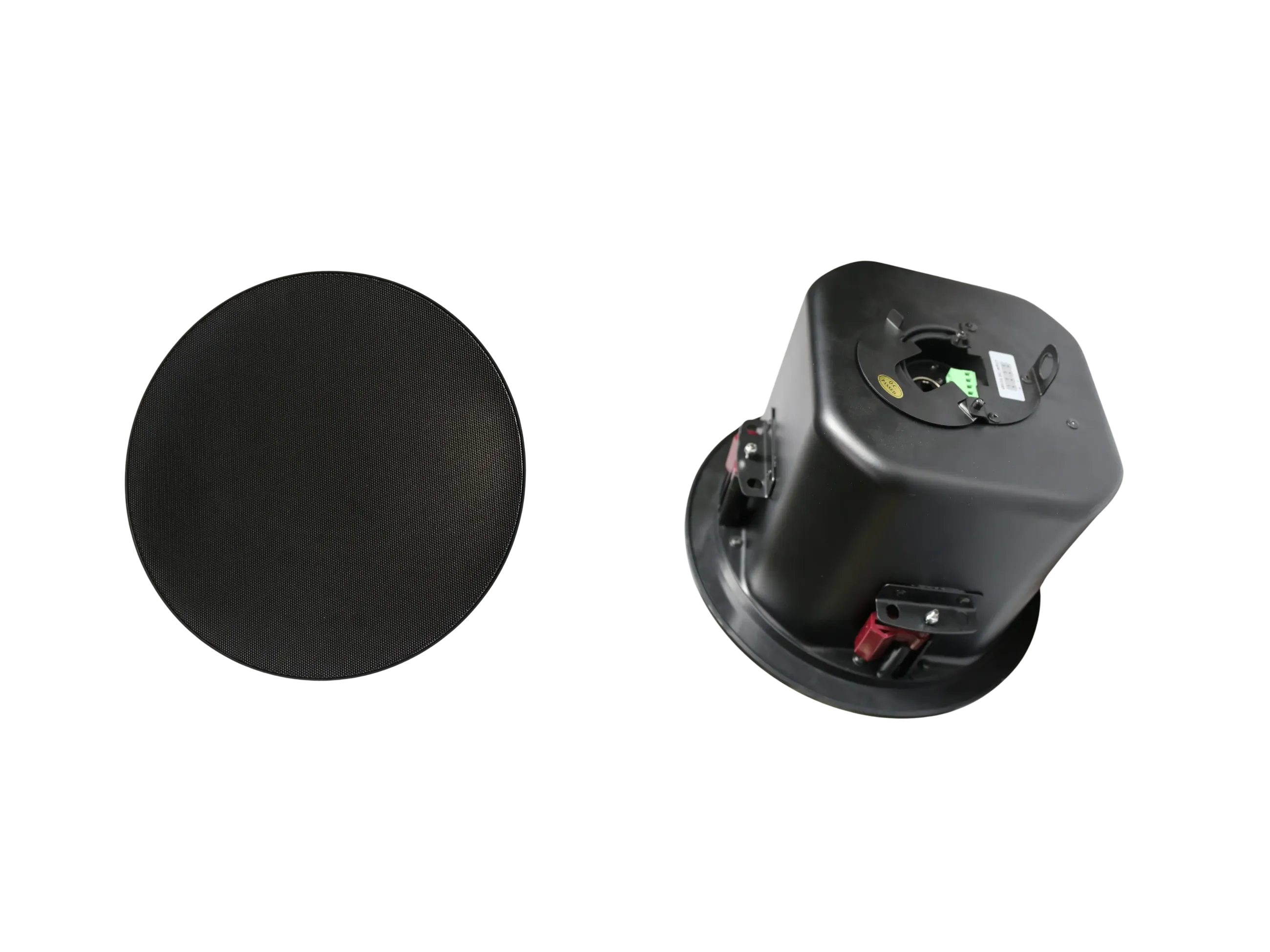

CLS Ceiling Speaker
The CLS series are high-quality ceiling speakers made with high-strength ABS material, powered through a single RJ45 network port input.
Available as the CLS6.5 and CLS8.0
The CL6.5 and CLS8.0 high-quality ceiling speakers are made with interior components and a frame designed perfectly to compliment each other. The panel is made with high-strength ABS material, add to that the fact that these active speakers are powered through an RJ45 network port input.
These can be used with ACX XPower series Class D switching power amplifiers, perfect for those needing high quality background music or for public broadcasts, conference room expansions, and other distributed systems.
Depending on which model you use, the weight of the CLS speakers varies from 3.34kg to 5.3kg, and has a frequency response of 130Hz ~17kHz, or 90Hz ~ 15kHz.
| Model | CLS6.5AN++ | CLS8.0AN++ |
| Components | 1 × 6.5” bass 1 × 1” treble | 1 × 8” bass 1 × 1” treble |
| Frequency Response | 88dB | 64dB |
| Max SPL | 103dB | 111dB |
| Coverage | 150° | 150° |
| Sensitivity | 103Hz ~ 17kHz | 90Hz ~15kHz |
| RMS | 30w | 60w |
| Connectors | RJ45 network port input | RJ45 network port input |
| Color | white | white |
| Hole for Mounting | Φ235 | Φ290 |
| Dimensions (mm) | Φ267x162 | Φ320 x 245 |
| Net Weight | 3.34 kg | 5.3 kg |
