The Pluto is ACX's line of processor series designed for streamline connections in installation spaces and room-scale locations.
Multiple I/O configs from 12x8, 16x116, 18x10 and 8x4 with a USB port, the Pluto supports 64-bit floating point operation at 48/96kHz sampling rates with a low power consumption rate of <2watts.
Device is compatible with Windows, and macOS.
Android, and iOS.
Through years of independent research and development, ACX provides powerful algorithmic technology and software control support for the Pluto. This gives a product that has a full range of solutions, for configuration, operation, management, maintenance, and more.
The device sports several features desigend to make installation simple and maximize its effectiveness in installation settings with several I/O configurations for ease of use and customization. some of its many features include:
·Standard 1U Rack
·SC587, 64-bit floating point DSP, optional48/96kHz sampling rate

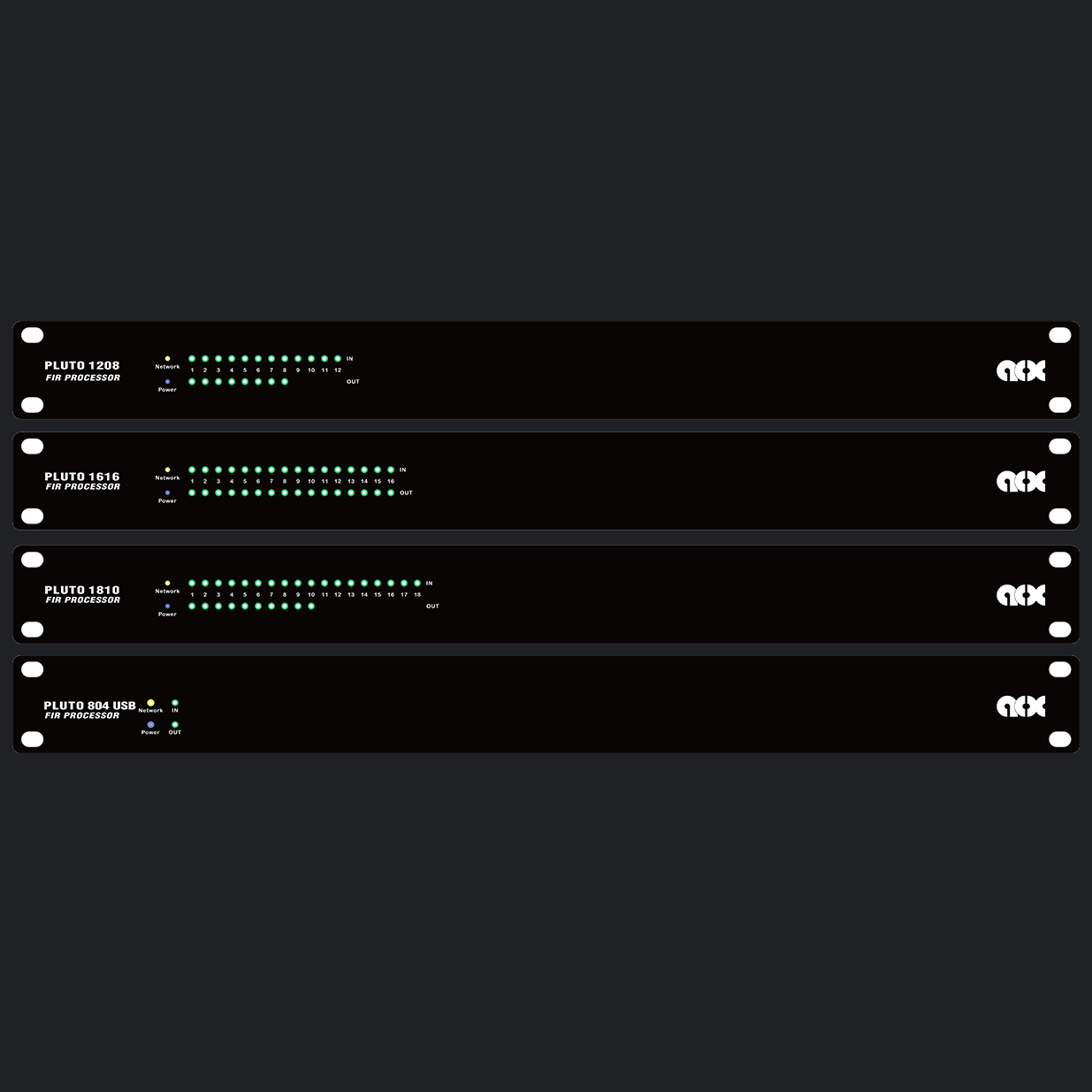

·3 Standard Models - 12 in 8 out, 16 in 16 out, 18in 10 out, 3 models
·Phoenix 3.5mm input and output interface,2-channel USB sound card (PL1810 only)
·Audio processing and control using ACXConsole for Windows and macOS
·Compatible with other ACX Devices - TP5/TP8touch screen compatible and works with ACX-Touch app on iOS and Android
·Optional Dante Transmission Card - 4×64 l/0,optional AEC automatic echo suppressionfunction module
·48kHz sampling rate support: 64X64 channels 96kHz sampling rate support: 32X32 channels
·Several audio processing modules - Mixer,Equalizer, high-pass filter /low-pass filter,divider, dynamic processor, router, volume controller, level meter, signal generator, and muchmore (more details in product manual and ACXaudio website.)
| Processor | 64-bit Floating Point |
| Sampling Rate | 48/96kHz |
| Input and Output Channels | 12 in 8 out, 16 in 16 out 18 in 10 out |
| AEC Channel | 100ms x 16; 250ms x 8 |
| Transmission Delay | 4ms / 2ms (corresponding to 48/96 kHz) |
| Power Supply | 100-240 VAC (50-60Hz) |
| Size | 483x44.4x306.5mm |
| Frame | 1RU, with vent between units |
| Weight | 3.9kg |
