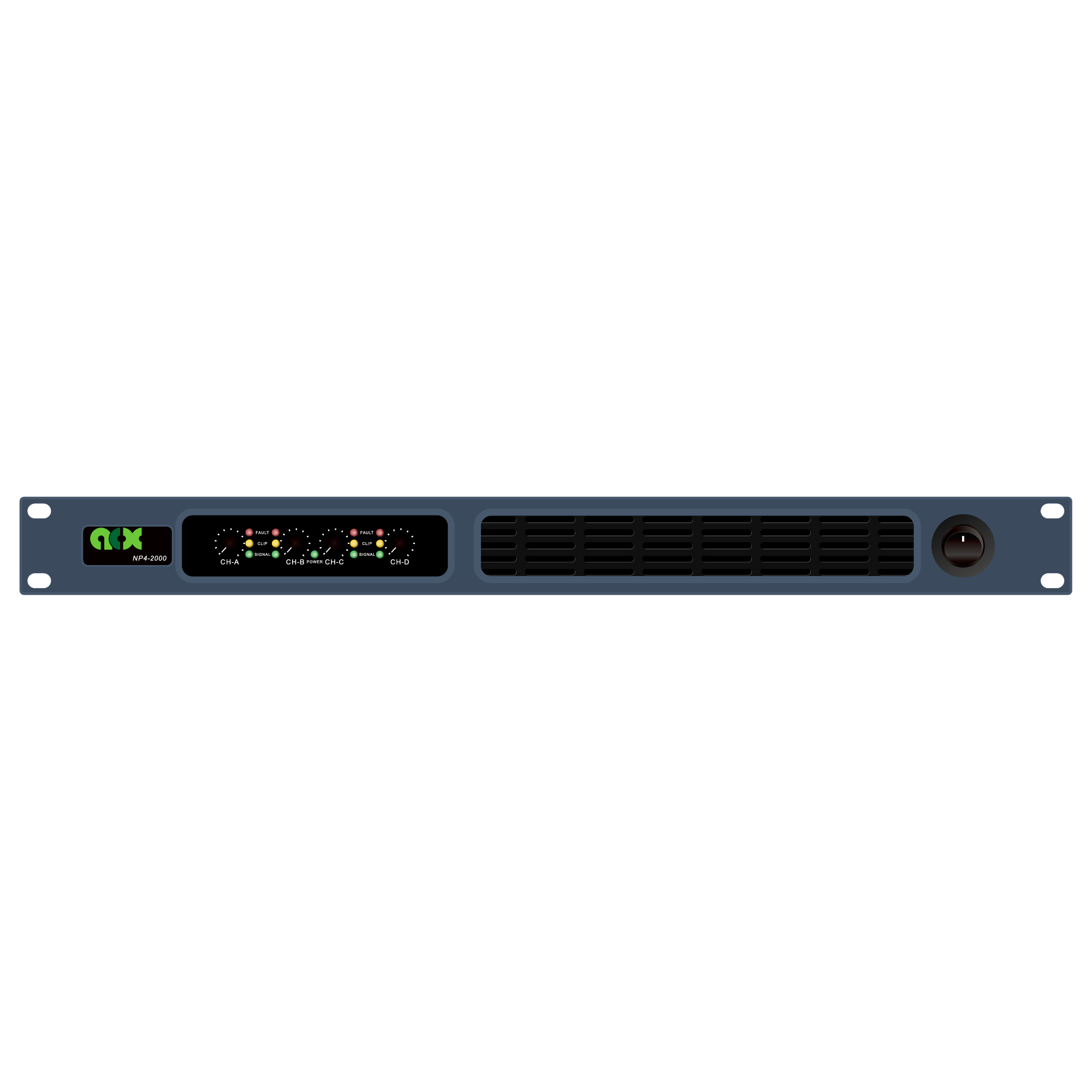

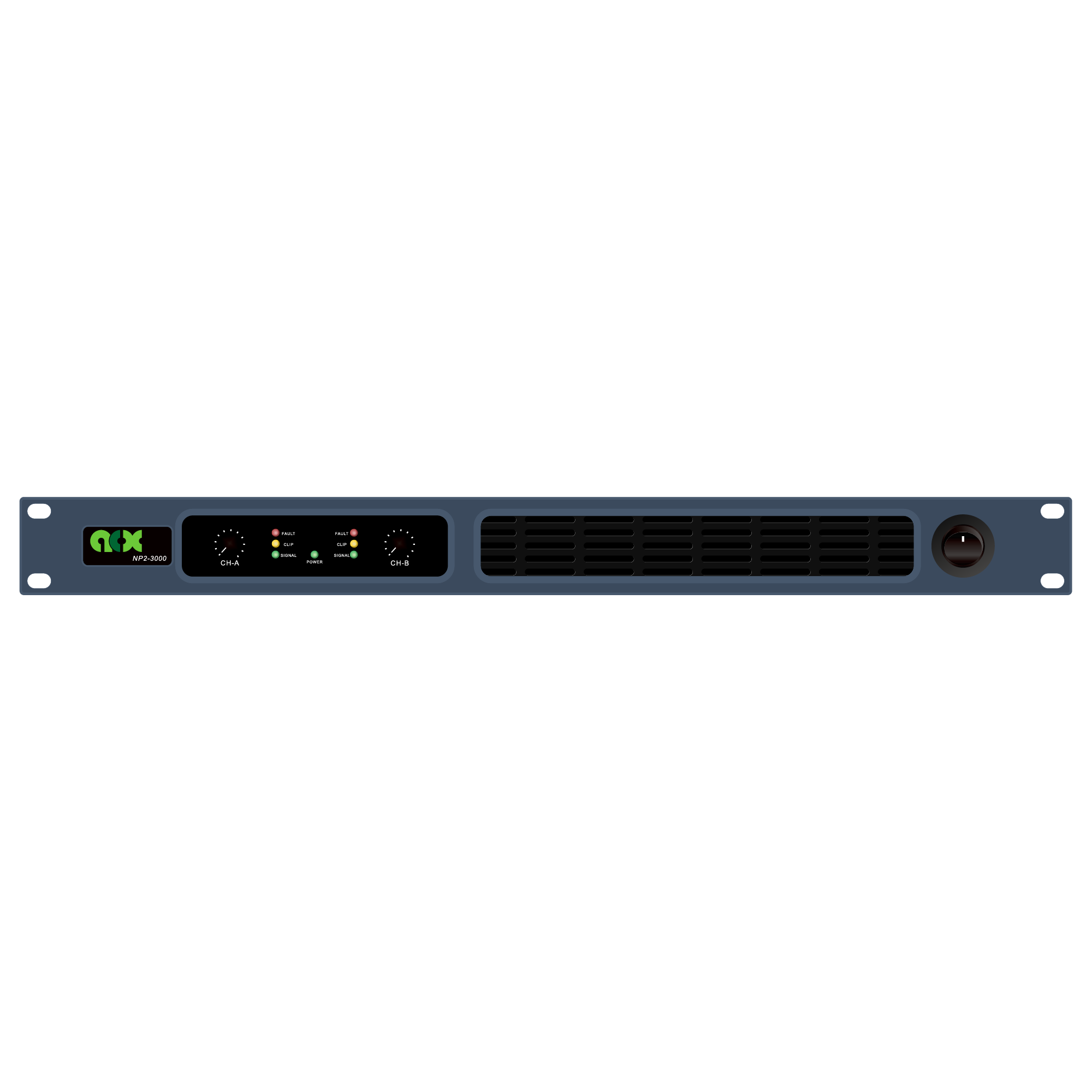

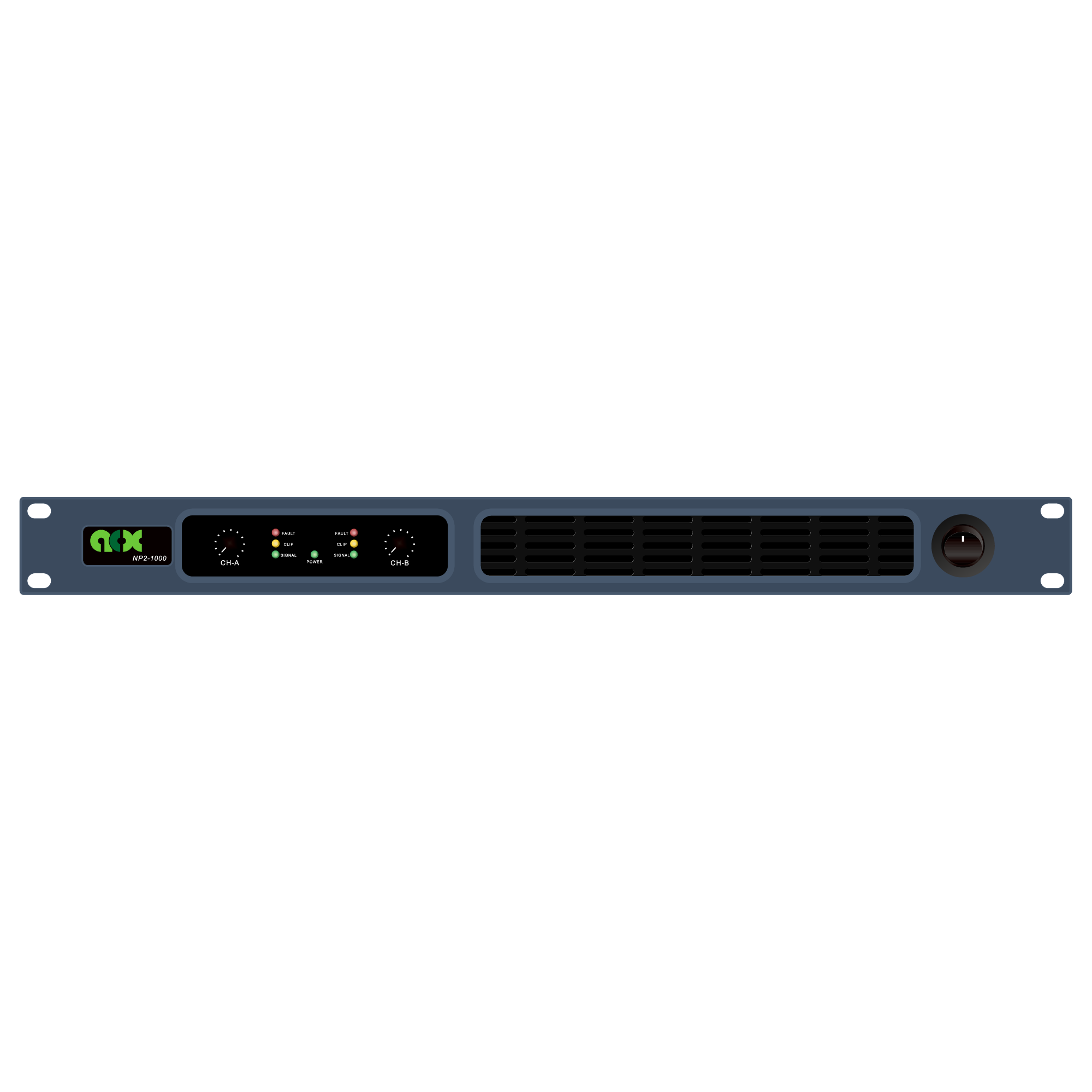

NP Professional Amplifier Series
Class D amplifiers built with high quality parts from manufacturers around the world. Light weight, quiet, stable, and reliable the NP series offers a wide range of configurations and power ranges for almost any application while also being extremely energy efficient.
Available in several different power ranges and as a 2 or 4 i/o configuration
Class D power amplifiers built off the back of hundreds of man-hours worth of R&D and a quality production team. Usable in several environments with stable and reliable results, these cost-efficient devices are efficient, light weight, and comply with several safety and EMC standards.
The NP amplifiers can offer a range of power supplies from 90~260VAC / 50~60Hz thanks to its components from international high-end manufacturers with a temperature control fan for quiet operations, and several designs for virtually any application.
Available as the NP2-1000, NP2-2000, NP2-3000, NP4-450v, NP4-650, NP4-1000, NP4-2000
| Model | NP2-3000 | NP4-2000 | NP2-2000 | NP4-1000 | NP2-1000 | NP4-650 | NP4-450 | |
| Rated Output Power(THD+ N=1%,1kHz continue sine wave,one channel driving) | 8Ω/Stereo | 2X3000W | 4X2000W | 2X2000W | 4X1000W | 2X1000W | 4X650W | 4X450W |
| 4Ω/Stereo | 2X5100W | 4X3400W | 2X3400W | 4X1700W | 2X1700W | 4X1100W | 4X765W | |
| 2Ω/Stereo* | 2X7140W | 4X4760W | 2X4760W | 4X2890W | 2X2890W | 4X1870W | 4X1301W | |
| 16Ω/Bridge | 1X6000W | 2X4000W | 1×4000W | 2X2000W | 1×2000W | 2X1300W | 2X900W | |
| 8Ω/Bridge | 1X10200W | 2X6800W | 1X6800W | 2X3400W | 1×3400W | 2X2200W | 2X1530W | |
| 4Ω/Bridge* | 1X14280W | 2X9520W | 1X9520W | 2X5780W | 1X5780W | 2X3740W | 2X2601W | |
| Output RMS voltage | 154.9V | 126.5V | 126.5V | 89.4V | 89.4V | 72.1V | 60.0V | |
| Gain (Rated Power,1kHz) | selectable 41dB 38dB 35dB 32dB | selectable 38dB 35dB 32dB 29dB | selectable 35dB 32dB 29dB 26dB | |||||
| Default Gain(Rated Power,1kHz) | typical:0.01%(10%Rated Power,8Ω) | |||||||
| Cross-talk | ≥90dB(20Hz-1kHz,below Rated Power) | |||||||
| Frequency response | typical:+0,-0.5dB(10%Rated Power,20Hz-20kHz,8Ω) | |||||||
| Input impedance | 20kΩ(Balance),10kΩ(Unbalance) | |||||||
| Damp factor | typical:5000(8Ω,20Hz-200Hz) | |||||||
| SNR | ≥105dB(A weighted,20Hz-20kHz,8Ω) | ≥100dB | ||||||
| Main power | 90~260VAC,50/60Hz | |||||||
| Protection | Protection:Under voltage,DC,Over temperature;Limiter:Over temperature,Over load,Short | |||||||
| Size(W×H×D) | 483x45x465mm | 483x45x370mm | ||||||
| Net weight | 13kg | 9kg | ||||||
*Test condition:20ms,1kHz,THD+N=1%.
