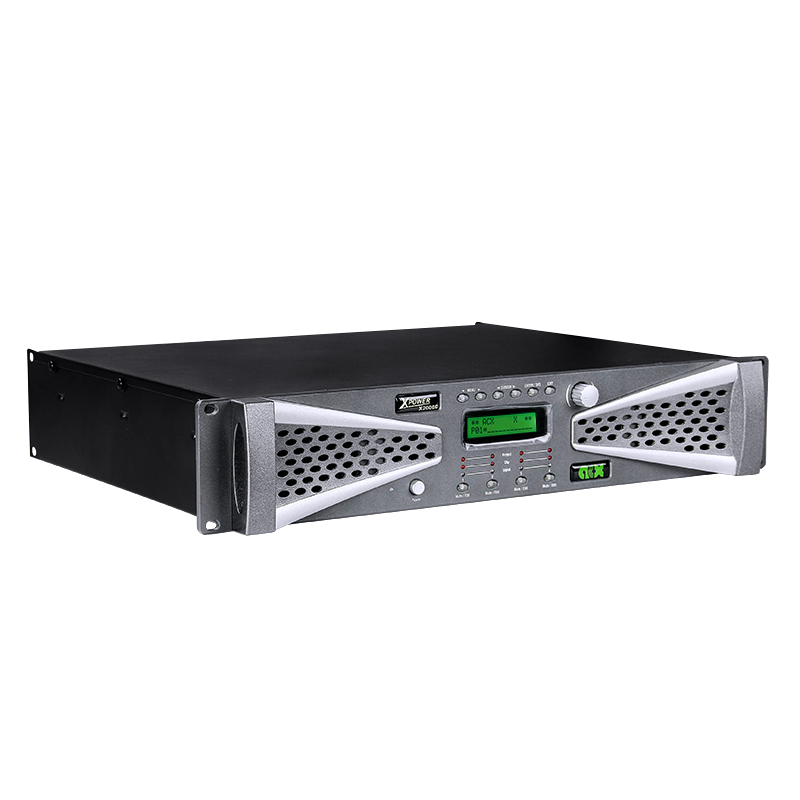

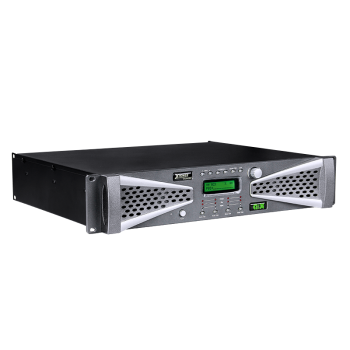

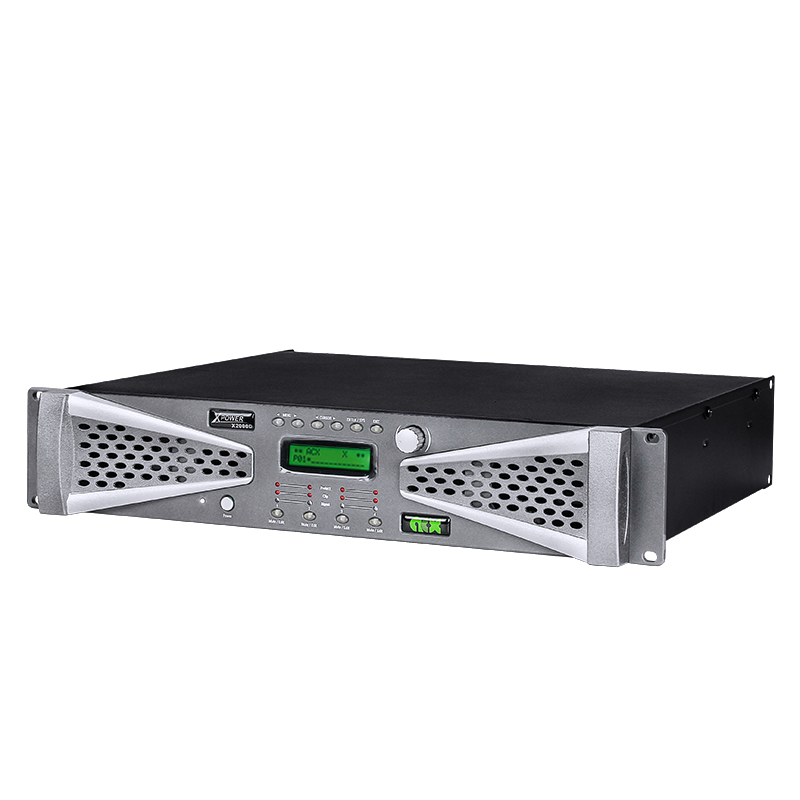

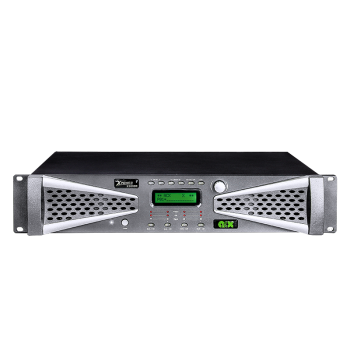

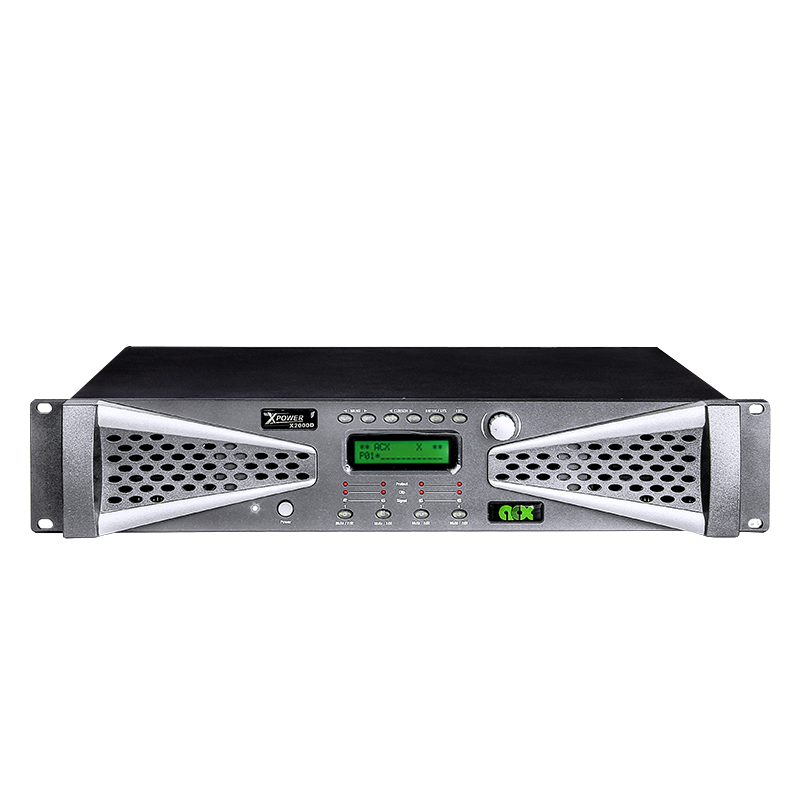

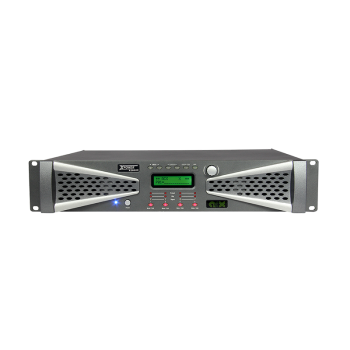

With a built-in DSP module inside the XPower, the comes the birth of the 'D' and 'D4' variants of the XPower devices. The 2 in 4 out DSP module holds 40 bit floating point, 96kHz sample rate and 24bit A/D D/A converter, while being controllable remotely with a ACX'ssoftware.
Available as the X2000D, X4000D, X1D, X2000D3, X4000D4, and X1D4.
With DSP module inside XPower, the 2 in 4 out XPower-D is born. The 2 in 4 out DSP module holds 40 bit floating point, 96kHz sample rate and 24 bit A/D D/A converter.
The amplifiers is also available as the XPower D4 which allows for 4 in 4 out channels with Phoenix input. The devices reach a maximum level of +20dBu, and a frequency response of +/-0.1dB (20 to 30kHz), and 115dB dynamic range (unweighted).
Also comes with standard safety locks such as a password system and being able to set 30 presets at a time, which can be set and controlled via the ACX Console using a USB or Ethernet.
| MODEL | X2000D/X4000D/X1D | X2000D4/X4000D4/X1D4 |
| Number of Channels | 2 analog input,4 speaker output | 4 analog input,4 speaker output |
| Input Port | 3-pin XLR | Phoenix |
| Input Impedance | >10KQ | |
| Maximum Level | +20dBu | |
| Freq Response | +/-0.1dB (20 to 30kHz) | |
| Dynamic Range | 115dB typical (unweighted) | |
| CMMR | >40dB (20 to 10kHz) | |
| Crosstalk | <-100dB | |
| Distortion | 0.002%(1kHz @+4dBu) | |
| Processor (DSP) | 40-Bit Floating Point | |
| Sample Rate | 96kHz | |
| Analog Converters | Super Performance 24-bit | |
| Propagation Delay | 1.5ms | |
| Gain | -40 to +15dB in 0.25dB steps | |
| Polarity | +/- | |
| Delay | Up to 40ms per l/O | |
| Variable EQ | 8 per I/O | |
| Type | Parametric,Hi-shelf,Lo-shelf,Phase(1st and 2nd order) | |
| EQ Gain | -30 to +15dB in 0.25dB steps | |
| EQ Bandwidth | 0.02 to 2.50 Oct(Q=0.5 to 72) | |
| Crossover Type | Butterworth,Linkwitz Riley,Bessel | |
| Slope | 6 to 48dB/Octave | |
| Compressor/Limiter | 1 Compressor per input channel,1 Limiter per output channel | |
| Threshold | -20 to +20dBu | |
| Attack | 0.3 to 100ms | |
| Release | 2 to 32x the attack time | |
| Ratio | 1:1 to 1:40 (Compressor Only) | |
| Number of Presets | 30 | |
| Delay Units | ms,ft,m | |
| Frequency Modes | 36 steps/Oct,1Hz Resolution | |
| Security locks | Password | |
| Channel names | 6 Characters | |

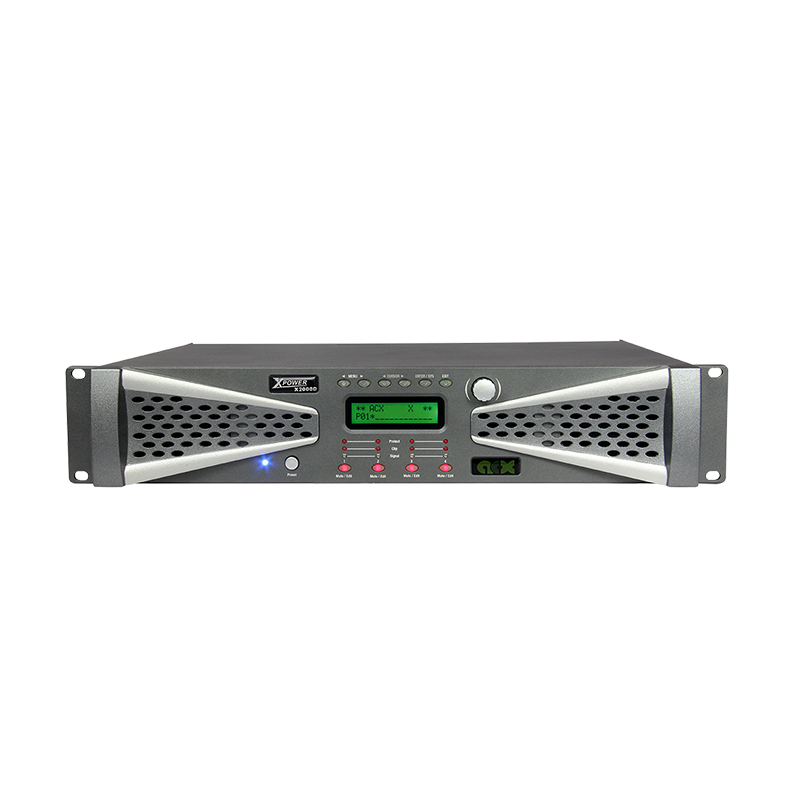

| Display | 2 x16 Characters Backlit LCD | |
| Buttons | 4 Mute/Channel Controls,6 System Menu Controls,1 Dial Encoder | |

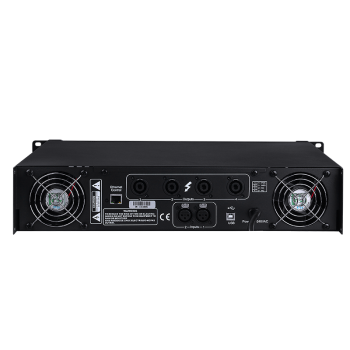

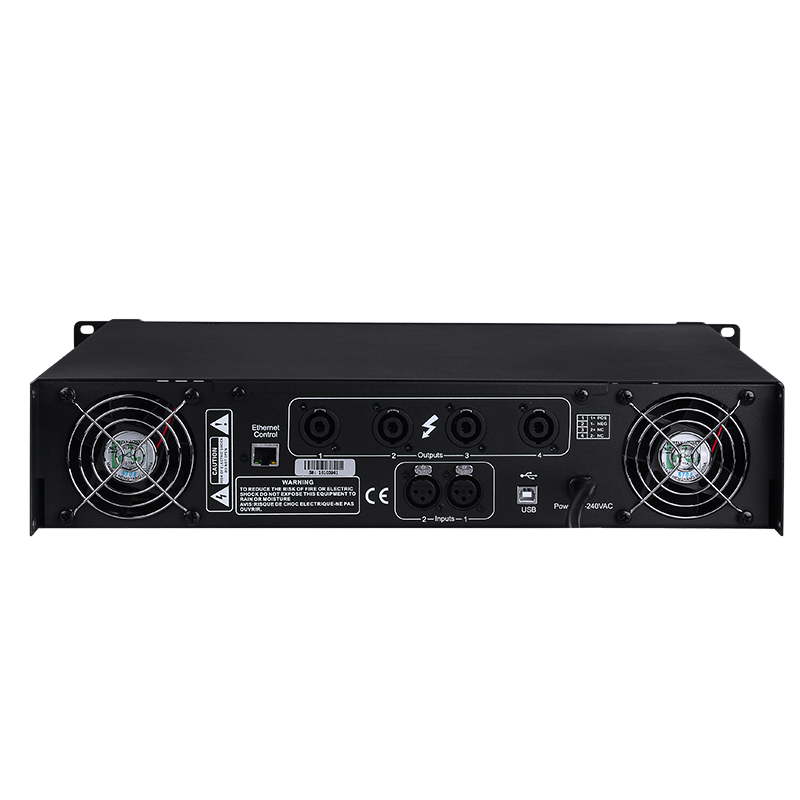

| USB | Type B | |
| Ethernet | Standard CAT-5 | |
| Dimensions | X2000D/X2000D4/X4000D/X4000D4:483x388x88mm X1D/X1D4:483x469x88mm | |
| Weight | 6.5kg17.5kg/12.4kg | 6.6kg/7.6kg/12.6kg |
