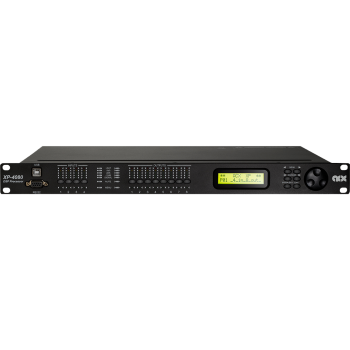

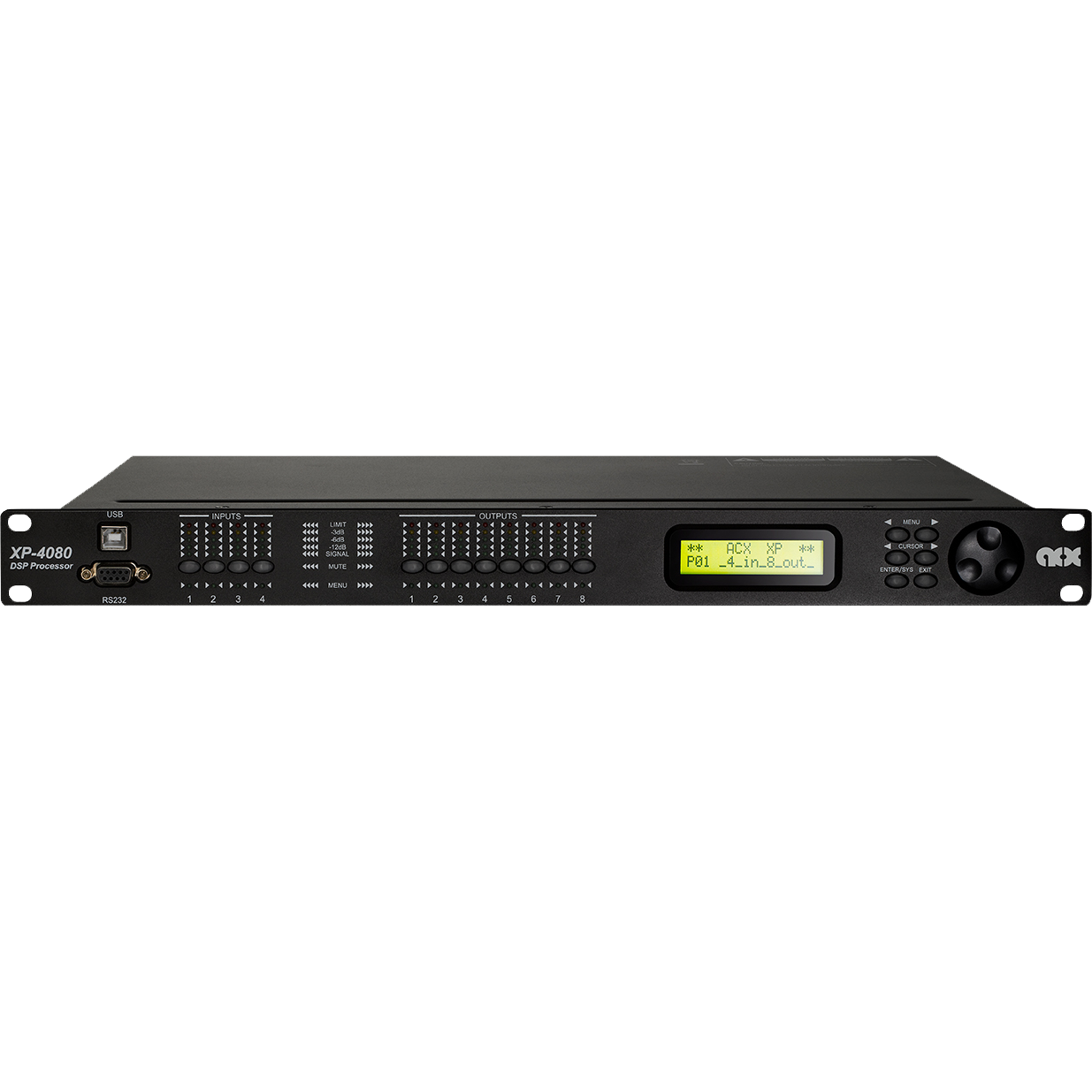

ACX's XP series of profesional matrix DSP system controllers, delivering great value-to-performance, its one of the most reliable DSP's on the market, backed by years of legacy design from its original factory and reliability.
The system is available in four different I/O configurations: XP2040, XP3060, XP4080, and XP8080, with, or selectable mic/line inputs. See model variants for full list.
The XP series provides an outstanding value-to-performance ratio, as the only DSPs that sample 96kHz while being a 40-bit floating point DSP, and feature 24-bit converters within its price category
XP-M suffix versions offer additional capabilities through switchable premium-grade Mic/Line inputs, with individual 48V phantom power.
Three of the I/O model sizes keep stocking and deploying simple for rental, MI and live sound providers, while optimally providing cost-saving by minimising unneeded channel counts, making it an ideal solution for simpler sound setups that just want to get a specific job done, and fast.
The series is also controllable through a wide range of options allow for the ultimate in user flexibility. Currently controllable with Windows via ACX Console, Android via ACX Touch and the low-cost, wall-mounted XWP and Mini series. Support for iOS devices coming soon.
| Input impedance | >10kΩ |
| Output impedance | 50Ω |
| Maximum level | +20dBu |
| Mic/Line | Mic(+40dB Fixed gain)/Line (0dB) |
| Type | Electronically balanced |
| Frequency response | +/-0.1dB (20 to 30kHz) |
| Dynamic range | 115dB typ (unweighted) |
| CMRR | >60dB @ 1kHz |
| Crosstalk | <-80dB @ 1kHz |
| Distortion | 0.002% (1kHz @ +4dBu) |
| Processor | 40-bit Floating point |
| Sampling rate | 96kHz |
| Analog converters | High-performance 24-bit |
| Propagation delay | 1.5ms |

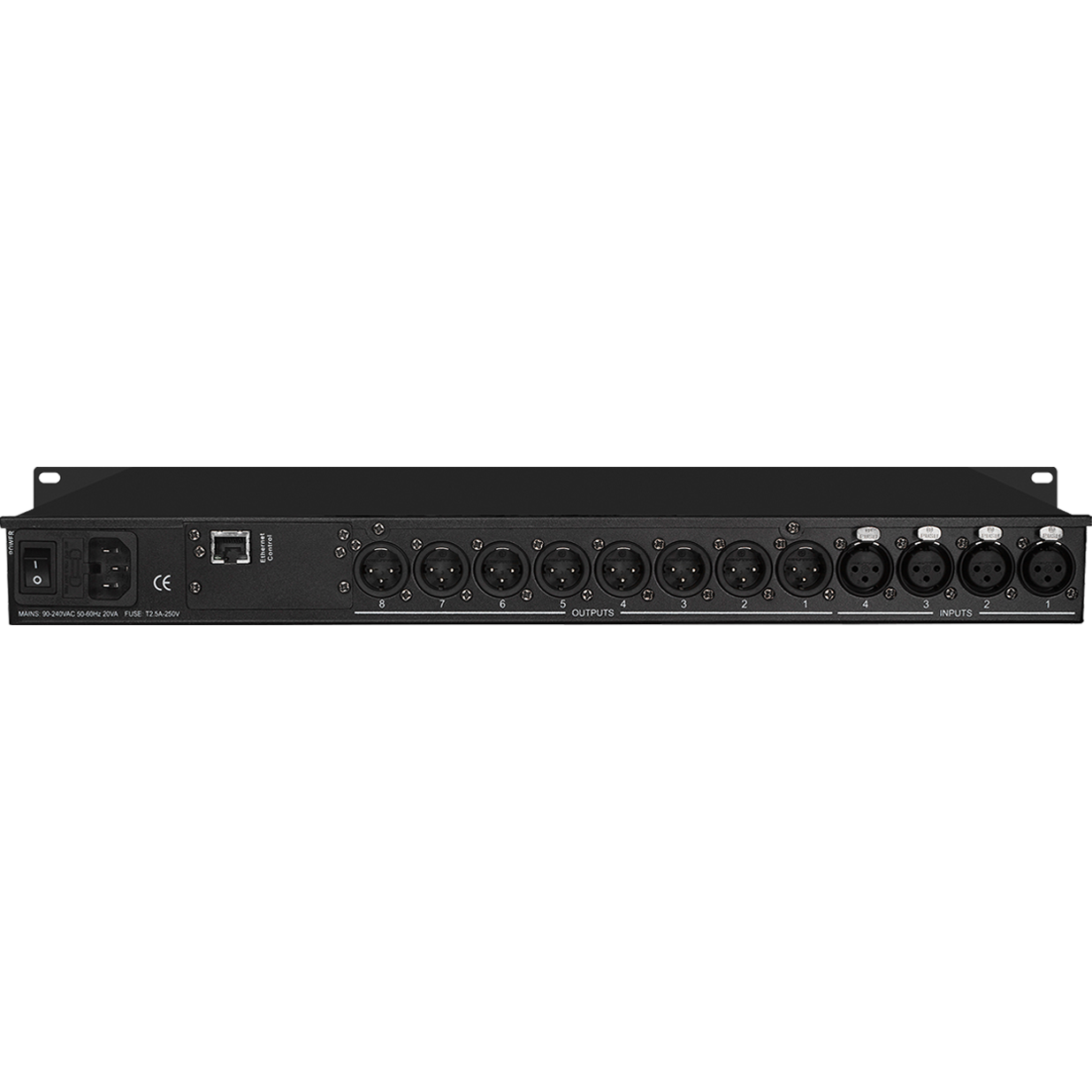

| Connectors | XP 2040,4080:XLR,USB,RS232,RJ45Ethernet, lEC power socketXP 8080: Phoenix connector(included)USB,RS232,RJ45 Ethernet,lEC powersocket |
| Power | 90-240 VAC(50-60Hz) |
| Dimensions | 19“x1.75"x9"(483x44x229mm) |
| Rack mount | 1RU, with vent between units |
| Weight | 11lbs/ 5kg |
| Warranty | 2 years parts and labor |
| Model | Base Model (XLR) w/selectable Mic/Line/48V | Base Model w/Phoenix | Base Model (Phoenix) w/selectable Mic/Line/48V | |
| 2x4 I/O | XP-2040 | XP-2040M | ||
| 3x6 I/O | XP-3060 | XP-3060M | ||
| 4x8 I/O | XP-4080 | XP-4080M | ||
| 8x8 I/O | XP-8080 | XP-8080M |
