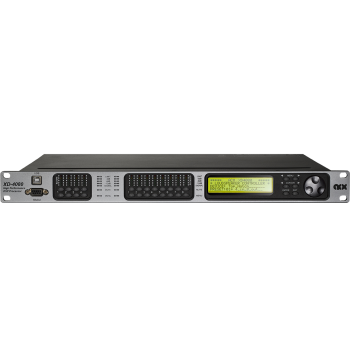

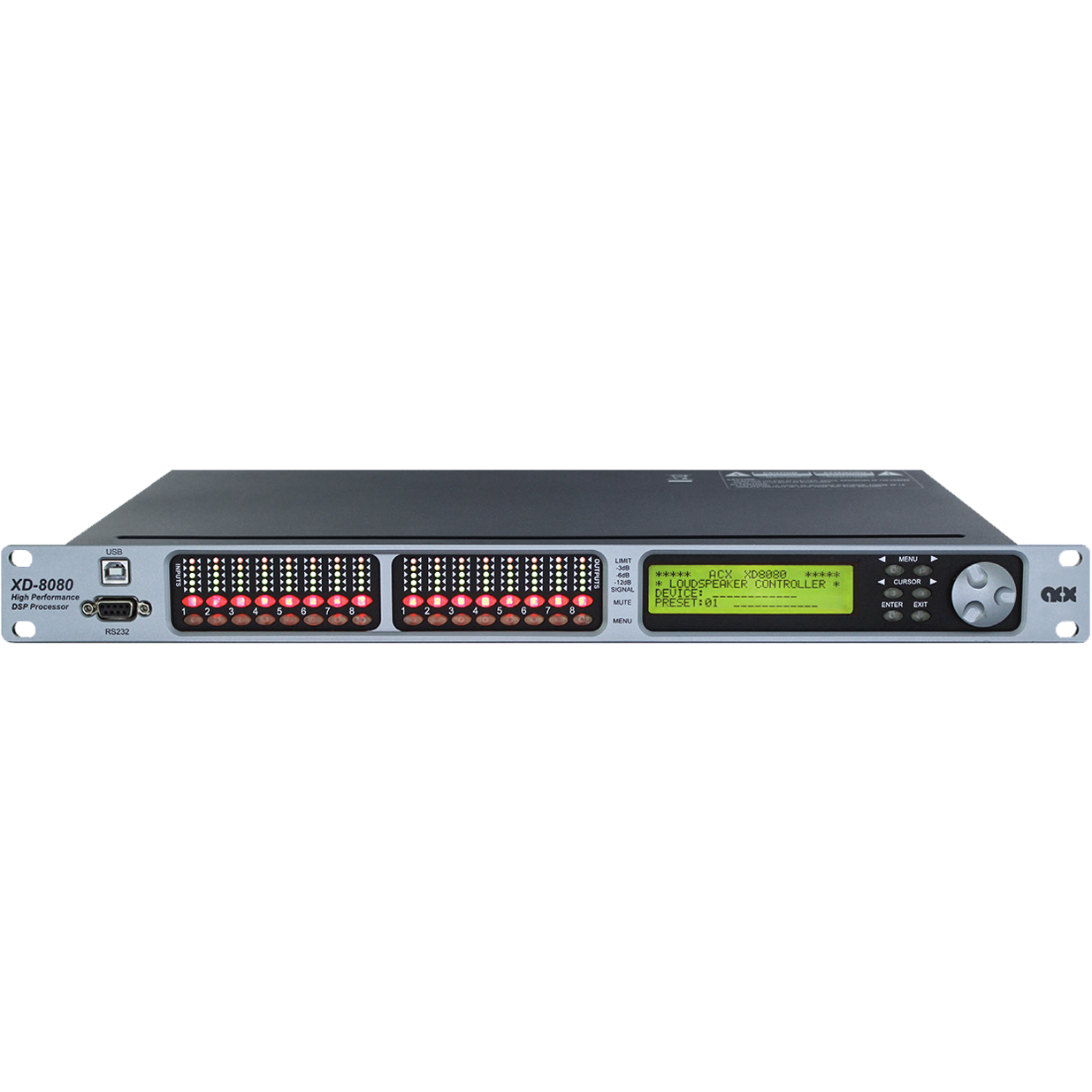

XD Series

An evolution of the famed DLP family of precessors, ACX's XD Series delivers uniquely-advanced features in a small-format, affordable footprint for the live sound and performance audio markets.
The system is available in multiple I/O Variants, with the XD4080 and XD8080 base models, or the XD4080-M and XD8080-M variants that have selectable Mic/Line Inputs & 48V with XLR I/O, and Phoenix I/O respectively.

The XD Series provides an outstanding value-to-performance ratio, as the only DSPs that sample 96kHz while being a 40-bit floating point DSP, and features 24-bit converters within its price category

Features a broad range of advanced signal processing functions alongside the standard ACX suite, including high-performance FIR crossover filters, 650ms delay per input/output, phase correction, and dual IIR crossover per input/output

Comes as standard with AES/EBU digital I/O using DB-25 multi-pin connector to suit larger digital deployments

Two model sizes keep stocking and deploying simple for rental, MI and live sound providers, whilst also giving optimal cost-savings by minimising unneeded channel counts

Wide range of control options allow for ultimate in user flexibility: optional Android and iOS app alongside the use of low-cost, wall-mounted XWP and Mini series

Input impedance>10kΩ
Output impedance50Ω
Maximum level+20dBu
Mic/LineMic (+40dB Fixed gain)/Line (0dB)
TypeElectronically balanced
Frequency response+/-0.1dB (20 to 30kHz)
Dynamic range115dB typ (unweighted)
CMRR>60dB @ 1kHz
Crosstalk<-80dB @ 1kHz
Distortion0.002% (1kHz @ +4dBu)
Processor40-bit Floating point
Sampling rate96kHz
Analog convertersHigh-performance 24-bit
Propagation delay1.5ms

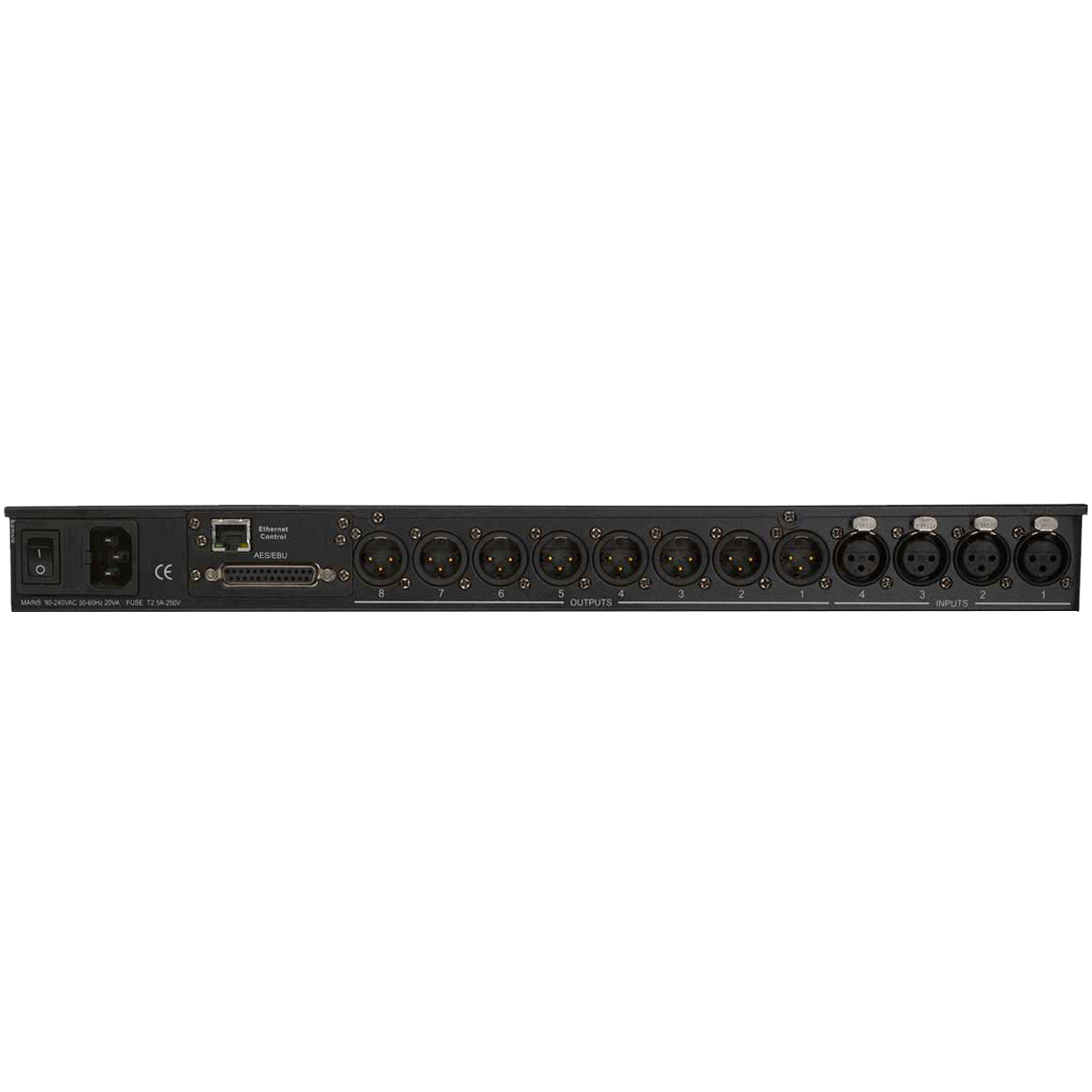

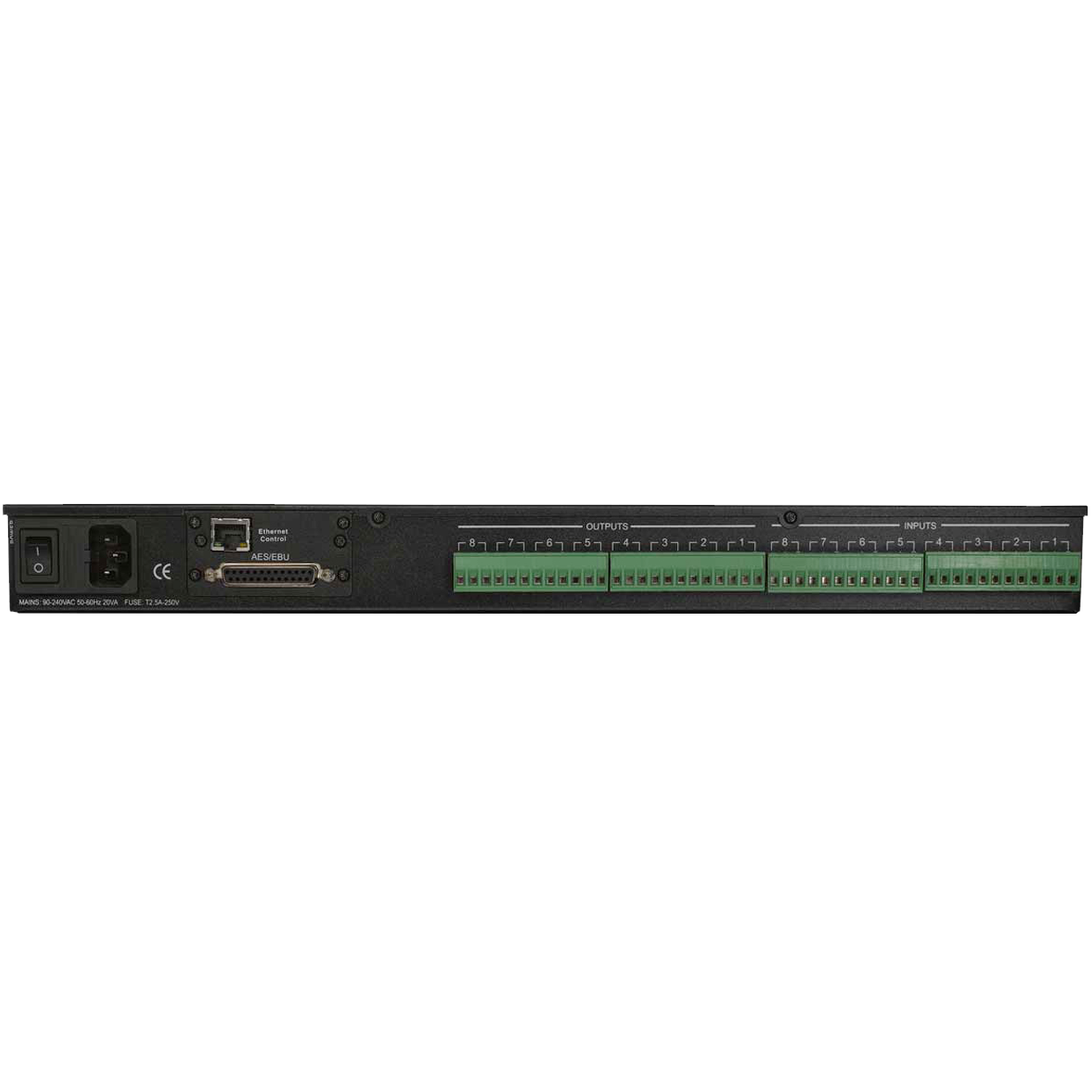

ConnectorsXD 4080: XLR, DB-25, USB,RS232RJ45 Ethernet, lEC power socketXD8080: Phoenix connector (included)DB-25,USB,RS232,RJ45 Ethernet, lECpower socket
Power90-240 VAC(50-60Hz)
Dimensions19“x1.75"x9"(483x44x229mm)
Rack mount1RU, with vent between units
Weight11lbs/ 5kg
Warranty2years parts and labor



ModelBase Model w/selectable
Mic/Line &48V
4x8 I/OXD-4080XD-4080M
8x8 I/OXD-8080XD-8080M
