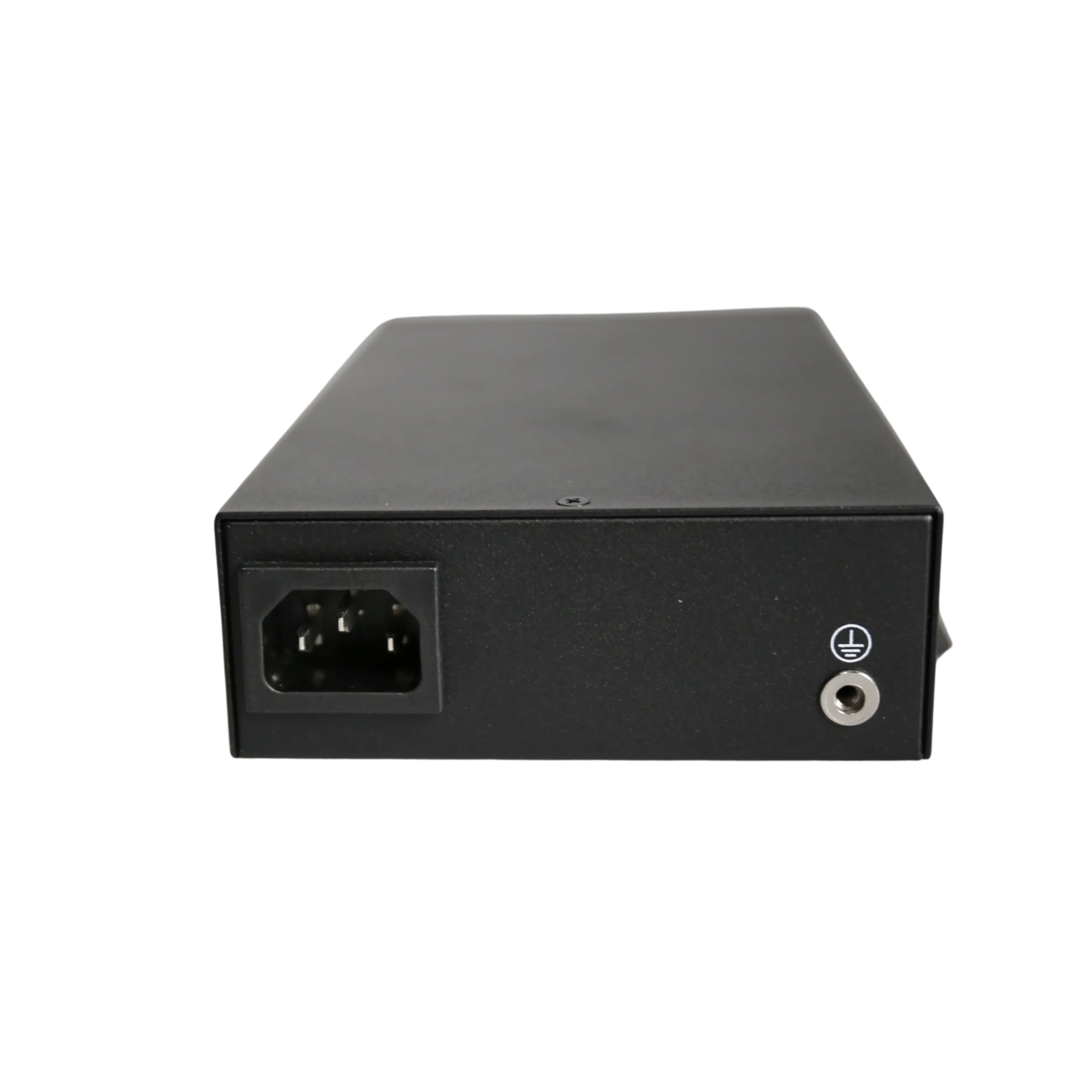

The PoE90+ Injector is a single-port PoE injector that's able to withstand a large temperature range, being able to work within temperatures of -40°c to +65°c and 100-240VAC input.
Its built-in detection chip lets it detect and classify PD before powering, and will not provide power until a standard compliant PD is detected. The effective distance of this device is over 100m over Cat5e/Cat6 cables.
The PoE90+ Injector is a single port injector that supports a wide temperature range.
Providing 55Vdc, 1.75A power for remote PDs over full 4 pairs with 6KV (10/700us) surge protection, it supports both 10/100 Base-T and Gigabit devices. Works with 95W PoE PDs such as wireless APs, base stations, high power cameras, door locks, displays, POS, information kiosks, and other high power Ethernet terminals. It is also compatible and safe to use with any IEEE802.3af/at, IEEE802.3bt compliant terminals.
The device remains operation at 100-240VAC output in -40°c to +65°c environments, and is the ideal solution for providing power in complex power situations.
| Specifications | |
| Standards | - IEEE802.3 10Base-T Ethernet - IEEE802.3u 100Base-TxFast Ethernet - IEEE802.3ab 1000Base-T Gigabit Ethernet - Full compliant with lEEE802.3af/at/bt - RoHS Compliance - WEEE Compliance |
| Inputs and Outputs | |
| Input | 100-240Vac 2.0A 50/60HZ |
| Output | 55Vdc 1750mA |
| Power Pins | 4/5(+),7/18(-) and 3/6(+),1/2(-) |
| Data Speed | 10/100/100Mbps |
| Working Environment | |
| Operating Temps | -40°c to 65°C |
| Operating Humidity | 20% - 80% non-condensation |
| Storage Temps | -40°c to 85°C |
| Storage Humidity | 100% - 90% non-condensation |
| Operating Altitude | up to 5000 meters |
| AC surge Protection | 2KV |
| Line-Earth 1.2/50us (8/20us) | 1KV |
| Line-Line1.2/50us (8/20us) | |
| PoE Surge Protection | |
| Protected lines | 1,2,3,4,5,6,7,8 |
| Common Mode Surge Protection (10/700us) | 6KV |
| Differential Mode Surge Protection (10/700us) | 1.5KV |
| Size | 214mm x 134mm x 41mm |
| Weight | 1070g |
| IP Rating | IP20 |
