POE Series

ACX's series of POE products does exactly what you need. A seamles connection for 10/100/1000M Ethernet and can be used as an ethernet power supply.

The POE series provide high performance while being cost effective, and being durable enough to sustain some wear and tear with high anti electromagnetic interference capability.

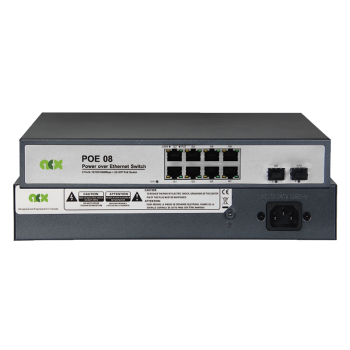

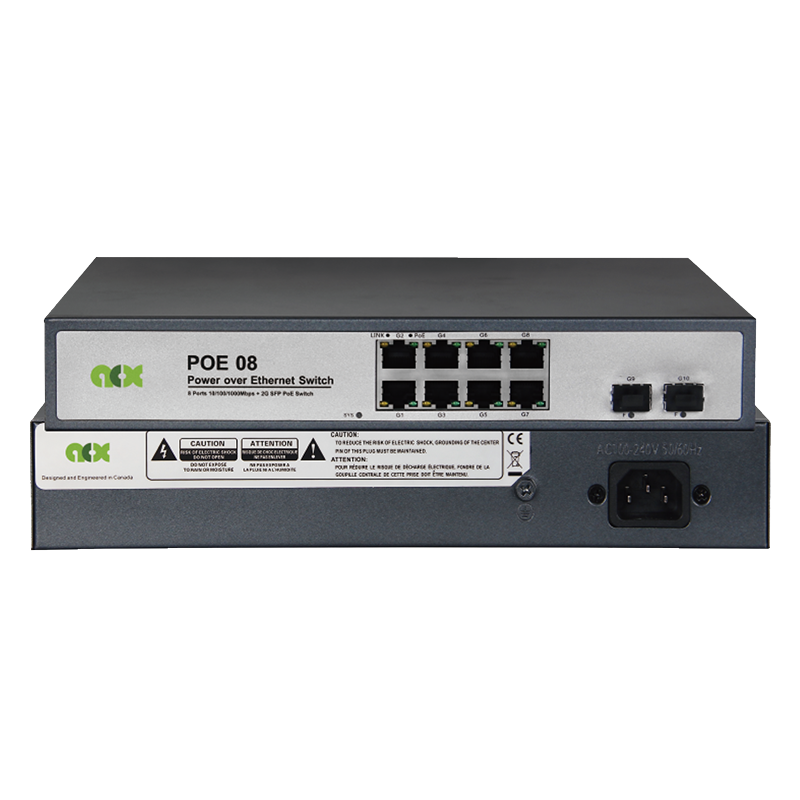

Available as the POE08 and POE24.

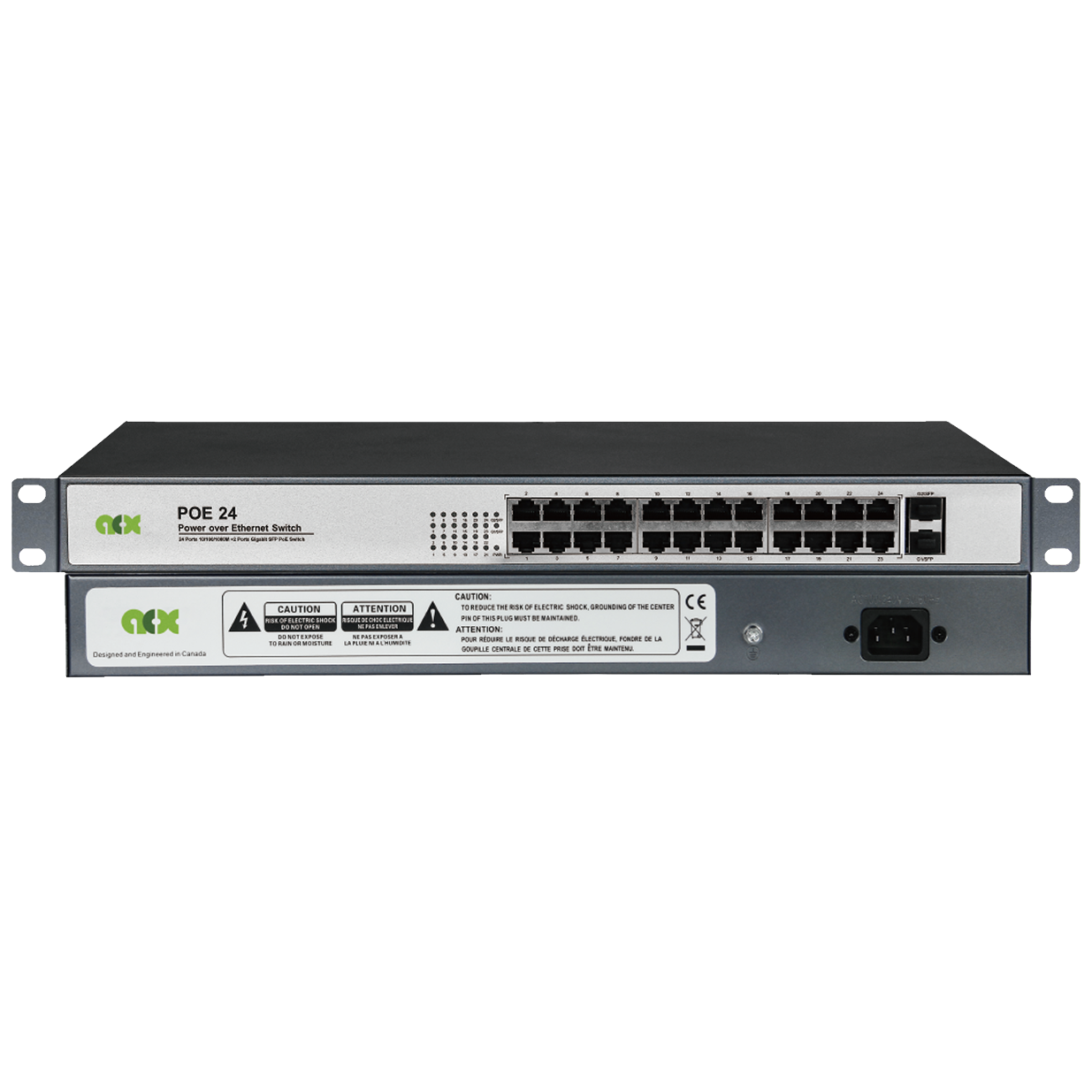

The full gigabit Ethernet PoE24 switch can provide seamless connection for 10/100/1000M Ethernet, and is equipped with PoE function, which can be used as an Ethernet power supply equipment (PSE). It can automatically identify whether the connected devices are compatible with IEEE 802.3af or IEEE 802.3at standards, and then provide them with sufficient power. Gigabit PoE switches use PoE technology to make it easier to deploy wireless access points (APs) and IP based terminal network devices.

Features Include:

- IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet,

- IEEE 802.3ab 1000BASE-T Gigabit Ethernet, ANSI/IEEE standard 802.3 Nway auto sensing,

- IEEE 802.3x flow control

- 10/100/1000M self sensing RJ45 port with PoE power function

- All ports support Auto MDI/MDIX (Auto MDI/MDIX)

- The power of a single PoE port can reach 30W (maximum), and the total power is 400W

- Powering devices compatible with IEEE802.3af/IEEE802.3at

- Support IEEE802.3x full duplex flow control and duplex back pressure flow control

- Automatic MAC address learning and updating

- 8K MAC address database

- 52Gbps backplane bandwidth

- High performance full load power configuration

- Support database switching mode and direct forwarding mode with very large

storage and forwarding
