Combine top-quality audio performance, easy of use and cost-efficiency and you get an incredible product from the popular NEUX digital signl processors, comprising of DHCP-enabled units, all available in four primary I/O model sizes.
Available as in several models from the A0808, A0816, A1608, and A1616, with multiple variations including Dante, AES/EBU, AEC, and more.
The Neutrino product range designed around drag-and-drop simplicity, allowing users the ability to quickly configure the precise DSP system required by any customer for any configuration.
Features a range Of I/O combinations to maximise choice and reduce unnecessary spend, including 8X8, 8X16, 16x8 and 16X6 - all with individual terminal block connections to permit rapid installation. Check the specifications for more deatils on the various I/O combinations that include options for Dante, AEC, AES/EBU, etc...
AvaiIabIe factory- installed option cards include bi-directional Dante networking, AES/EBU digital audio via a DB25 connector, and eight channels of low-latency AEC.
NEUX products can be controlled and programmed over Ethernet using the ACX Console software, which allows universal programming for third party devices.
NEUX connects to a wide range of control interfaces, including: Windows PC via ACX Console, and Android via ACX Touch. iOS support is coming soon. NEUX products can also be controlled using third-party control systems such as Crestron and AMX.
| Input impedance | >10kΩ |
| Output impedance | 50Ω |
| Maximum level | +20dBu |
| Mic/Line | Mic(+40dB gain)/Line(0dB) |
| Type | Electronically balanced w/ 48VPhantom power |
| Frequency response | +/-0.15dB (20 to 20kHz) |
| Dynamic range | 110dB typ (unweighted) |
| CMRR | >50dB @ 1kHz |
| Crosstalk | <-110dB @ 1kHz |
| Distortion | 0.002%(1kHz @ +4dBu) |
| Processor | 40-bit Floating point |
| Sampling rate | 48kHz |
| Analog converters | High-performance 24-bit |
| Propagation delay | 3ms(AEC: 11ms) |

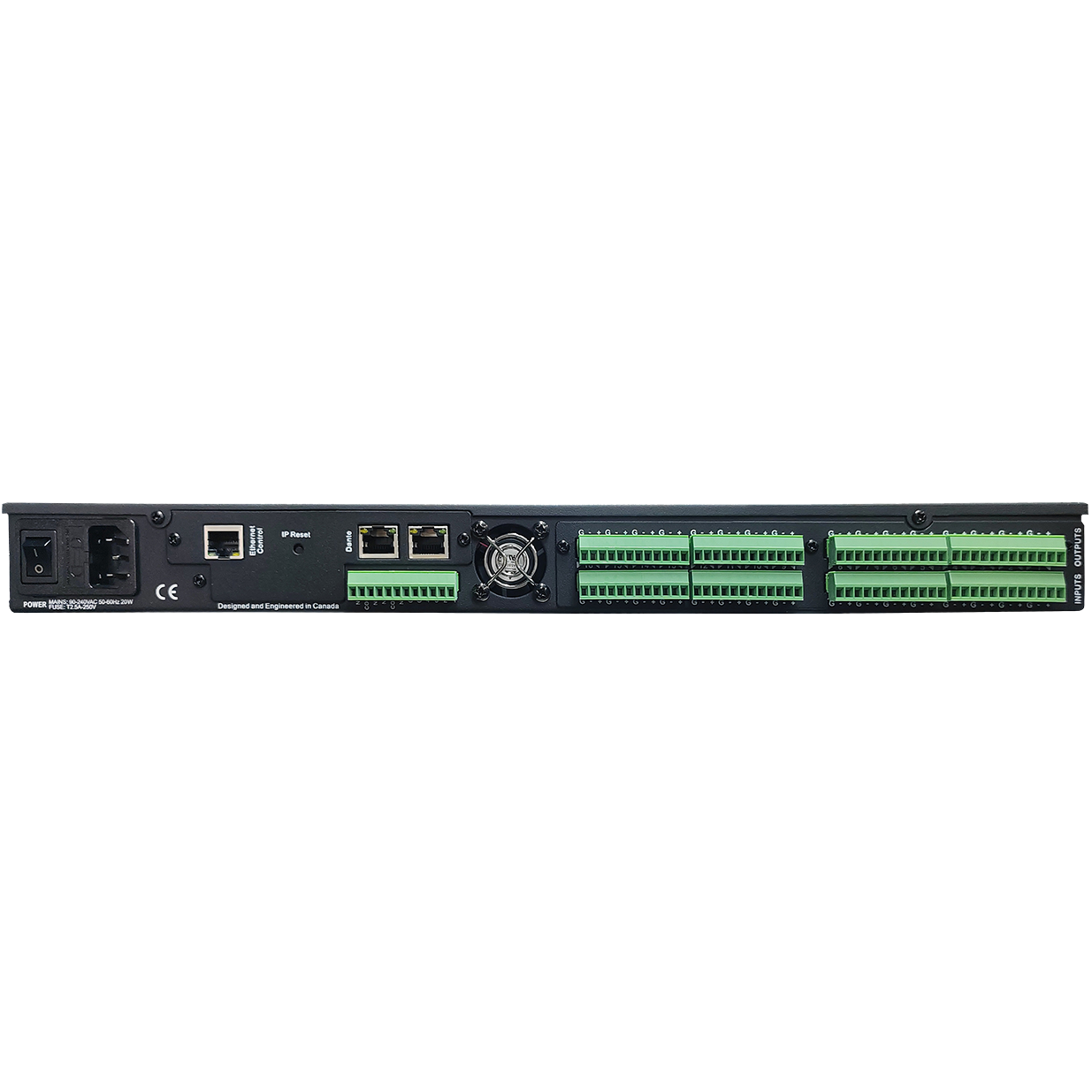

| Connectors | Phoenix Plug-in 3.5mm(included),RJ45Ethernet, lEC power socket(For Dante models only), DB-25 (AES/EBU for digital l/O models only) |
| Power | 90-240 VAC(50-60Hz) |
| Dimensions | 19“x1.75“x9"(483x44x229mm) |
| Rack mount | 1RU, with vent between units |
| Weight | 11lbs/ 5kg |
| Warranty | 2 years parts and labor |
| Model | With Dante | With AES | With AEC | With Dante & AES | With Dante & AEC | |
| 8x8 I/O | A0808 | A0808-N | A0808-D | A0808-ND | ||
| 8x16 I/O | A0816 | A0816-N | ||||
| 16x8 I/O | A1608 | A1608-N | A1608-AEC | A1608-AEC-N | ||
| 16x16 I/O | A1616 | A1616-N | A1616-D | A1616-AEC | A1616-ND |
