MINI Series

One of the real tests of the audio sound reinforcement system is how the end user controls the ease of using the system to suit their needs. With these in mind, ACX has developed a remote Mini control panel and a touch screen control tablet panel to enable users to easily communicate with ACX Media Matrix System.

Available as the K1 II, K4II, S4K1 II, S4II, and S8 II.

These modular control devices can handle volume control, scene program paging, logic combination control, etc. These flexible and truly adaptive modular devices can be used in a variety of combinations in the application venues to provide each room with customized end customer use modules according to the environment. When evaluating the external control options, an important consideration is whether they can easily integrate with the DSP system.

For most audio system projects, third-party control systems not only increase costs, but also may require professional audio facade skills to achieve. The control panel wrench daily touch screen control panel can be completely designed by the system designer, while the use of terminal users can reach a professional level.

These control panels receive the PoE power supply of the router through a network cable and send and receive control signals (if the router does not provide power supply, the Mini panel will be equipped with a standard power supply). They are connected to the router in a star chain way to control the media matrix series. The types and quantities of control panels can be combined at will.

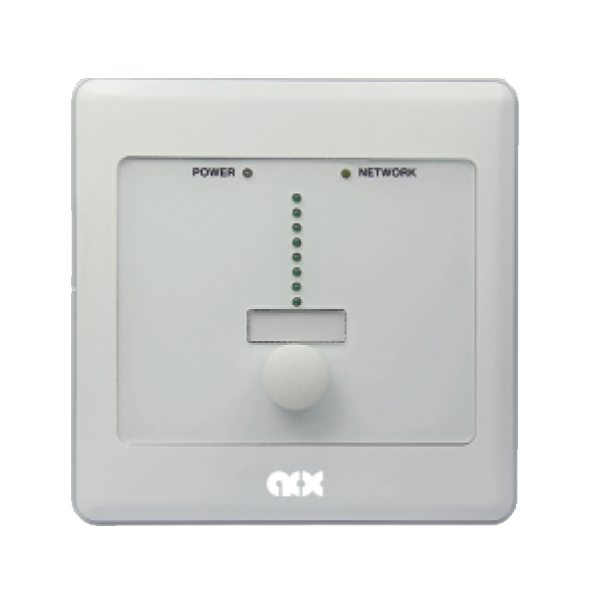

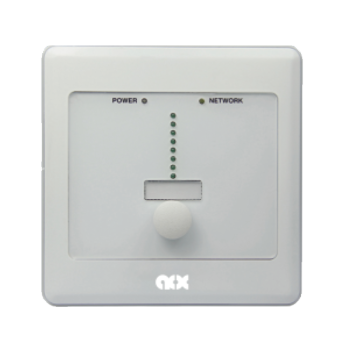

Products like the K1 II and KrII can adjust any internal 1-way, or 4-way volume. Volume control can correspond to a single channel or multi-channel signal. The types of audio signals can be input, output and marshalling in the media matrix series (Uno, Neutrino, MC, CM, FBX) Or any signal at the intersection of short array/

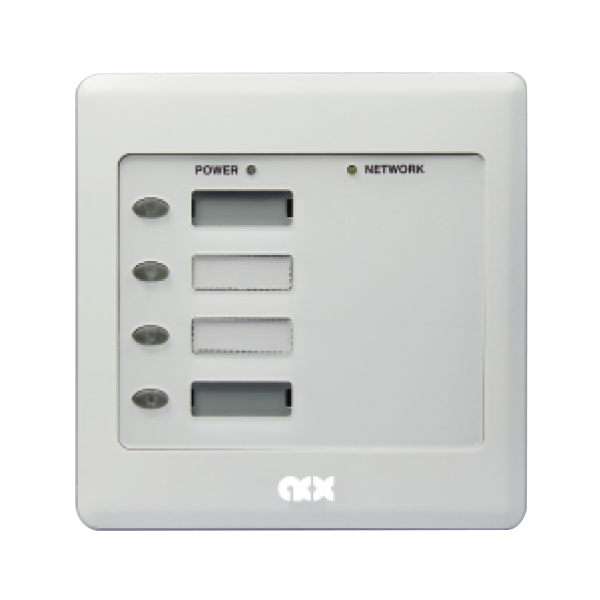

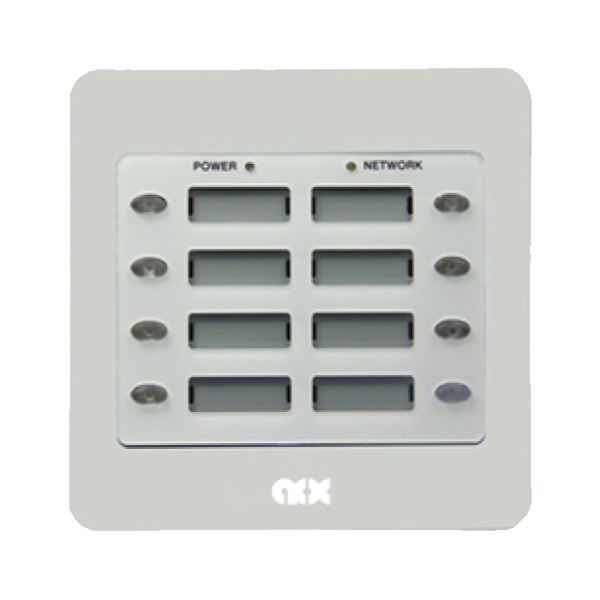

S4 II and S8 II can call the functions of four or eight stored songs or keys, which can be a single action or It is a combination of multiple actionsThe so-called action refers to the function of calling preset mode, mute, room divi-sion, etc. supported in the media matrix series

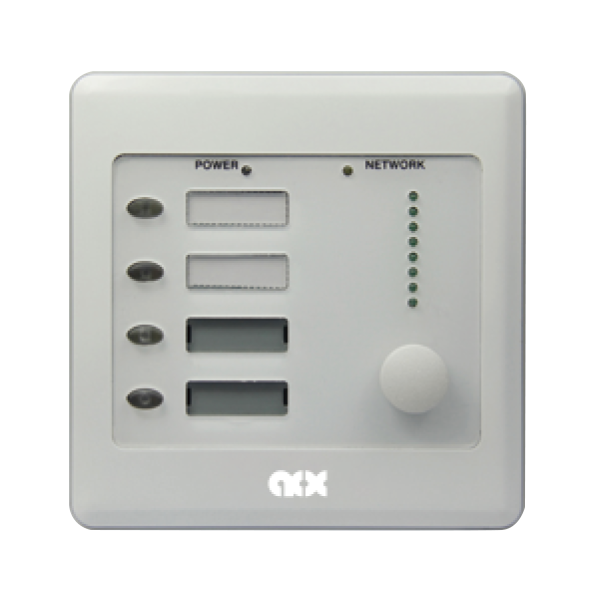

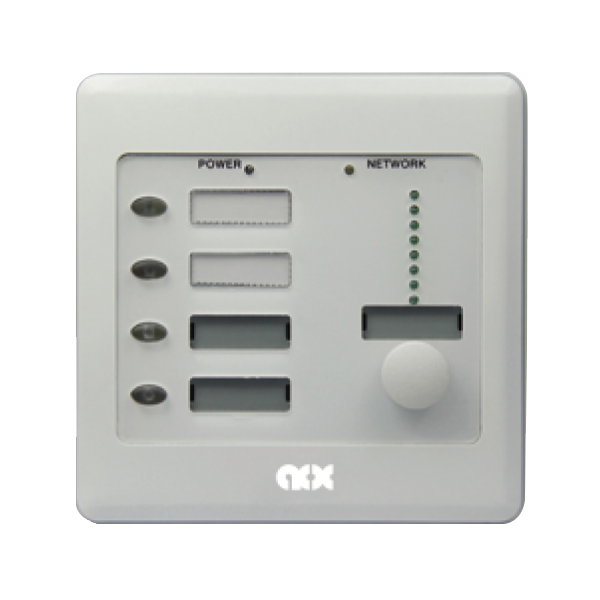

S4K1 II integrates the functions of S4 II and K1 II, and all functions of the control panels can be programmed by the ACX Console.

ModelS4 II/S8 II,K1 II/K4 II,S4K1 II
Size4.5”X 4.5”
Status indicatorsPower and Network LEDs
Wall MountingFits a 2-Gang Back Box
Label Slots1, 4 or 8
Power5 Volts DC @, 1A Power Supple Included
Remmended PowerPower Over Ethernet (POE)
Ethernet ConnectorRJ45
External Power2 Pin Detachable Euro Connector
IP Reset SwitchPush button
Weight0.9kg
