The MA/RX series are the most advanced DSP's ACX has to offer. Featuring high-performance 24-bit converters, DSP processed algorithims such as FIR filters, IIR filters, and many more benefits, allowing for the most comprehensive suite of functions for maximum flexibility and capabilities.

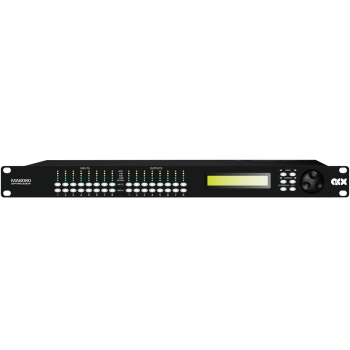

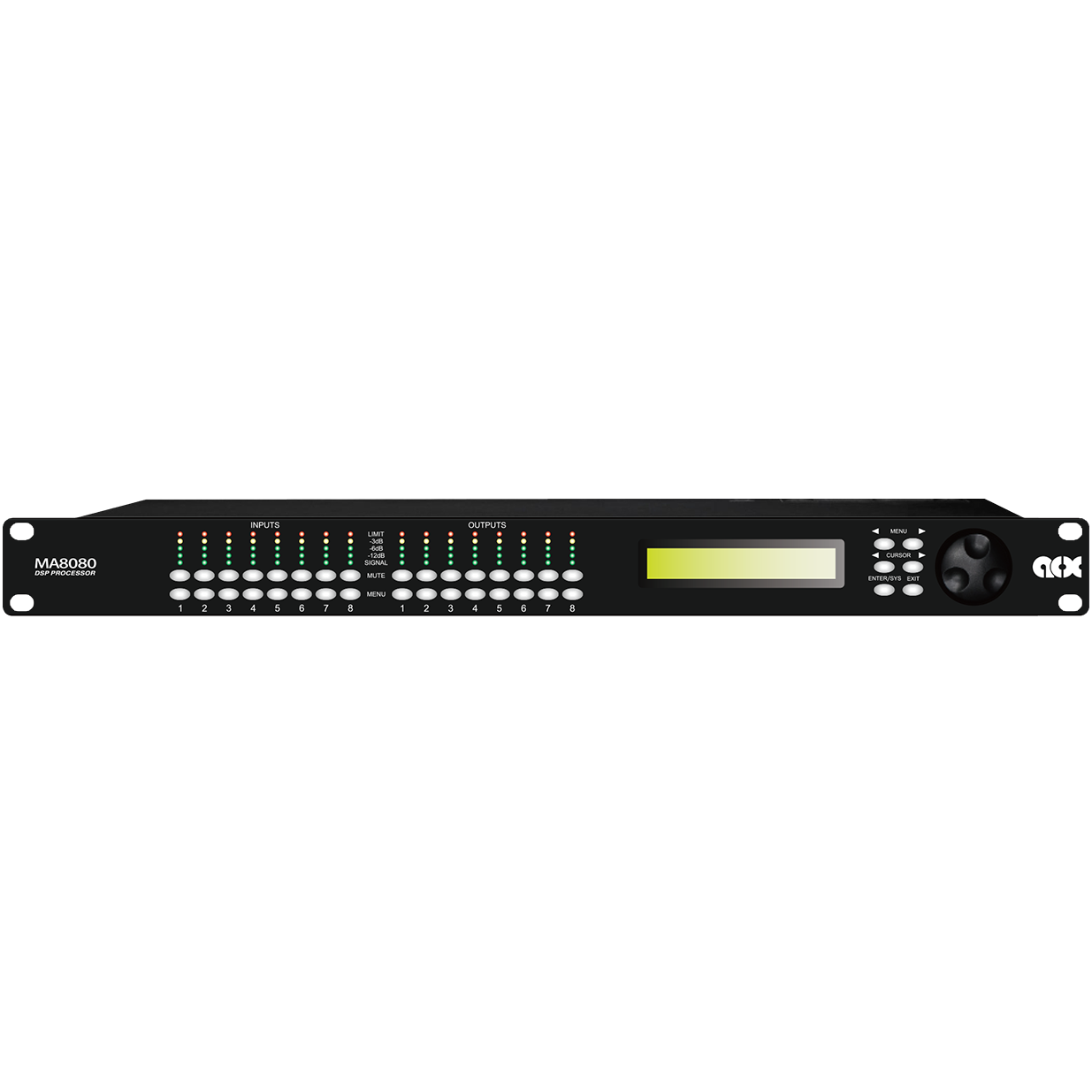

Available as the MA4080 and MA8080
The MA is a 96kHz 40 bit floating point DSP engine, high-performance 24 bit converters ， and DSP processed algorithms such as FIR filters, IIR filters, 650ms delay, 32 segment GEQ, and 8 segment PEQ, which can be used for on-site sound, leasing, small installations, and vertical array devices. The device also has a standard IU rack, and 4x8 XLR input/output interface, or 8x8 XLR input/output interface.
MA is connected through USB, Ethernet and RS485 ports for configuration, control, and monitoring, while many processing module functions are operated through ACX Console and ACX Touch mobile apps. Users can also pair the devices with the Xpanel series of wall-touch panels for remote control around a venue.
| Input impedance | >10kΩ |
| Output impedance | 50Ω |
| Maximum level | +20dBu |
| Input mode | Balanced line input |
| Output mode | Balanced line output |
| Frequent response | +/- 0.1dB (20 to 30kHz) |
| Dynamic range | 115dB type (unweighted) |
| Common mode rejection ratio | >60dB @ 1kHz |
| Crosstalk | -80dB @ 1kHz |
| Distortion | 0.002% (1kHz @ +4dBu) |
| Processor | 40-bit Floating Point |
| Sampling Rate | 96kHz |
| Analog converter | High-Performance 24-bit |
| Propagation delay | 1.5ms |
| Ports | XLR, USB, Ethernet, lEC Power Supply |
| Power supply | 90-240 VAC(50-60Hz) |
| Measurement | 19”x1.75”x9.3”(483x44.4x236.4mm) |
| Size | 1U Rack |
