Multi-zone amplifiers do not get simpler to install than with the D-Series.
Rocking multiple channel solutions from 8 to 16 channels, these are interacted with using the Phoenix interface, allowing for easy installation and modification, and the perfect solution for multi-zone audio.
Available as the D8120, and the D1660.
The D series of professional amplifiers offers multiple channels, each with simple installation and a perfect solution for multi-zones.

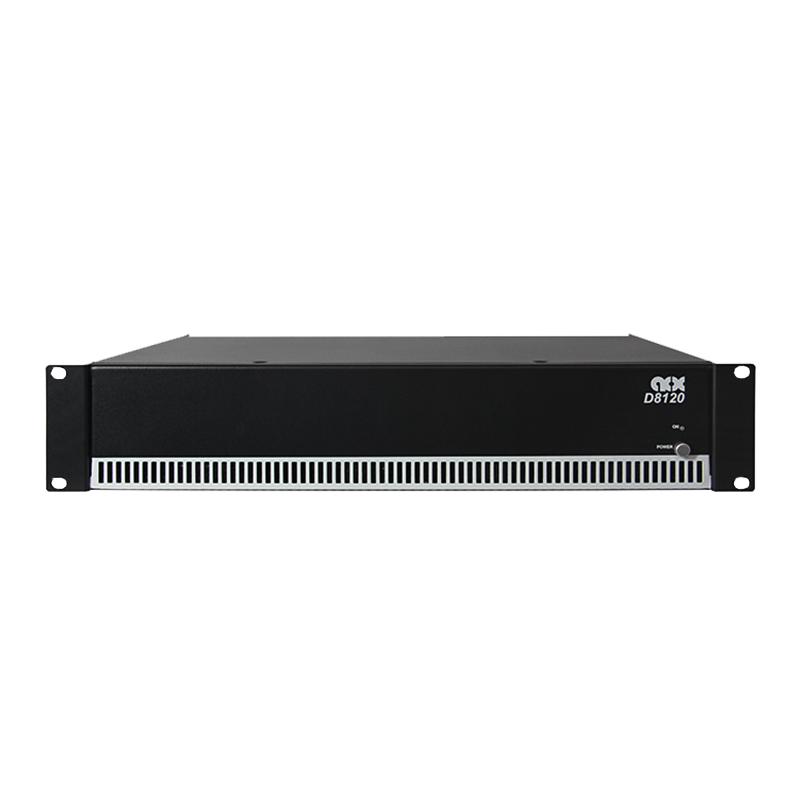

The D8120 is professional amplifier holding 8-channels Class D switching power supply, impedance of 4 Ohm, power in 250w and 120w

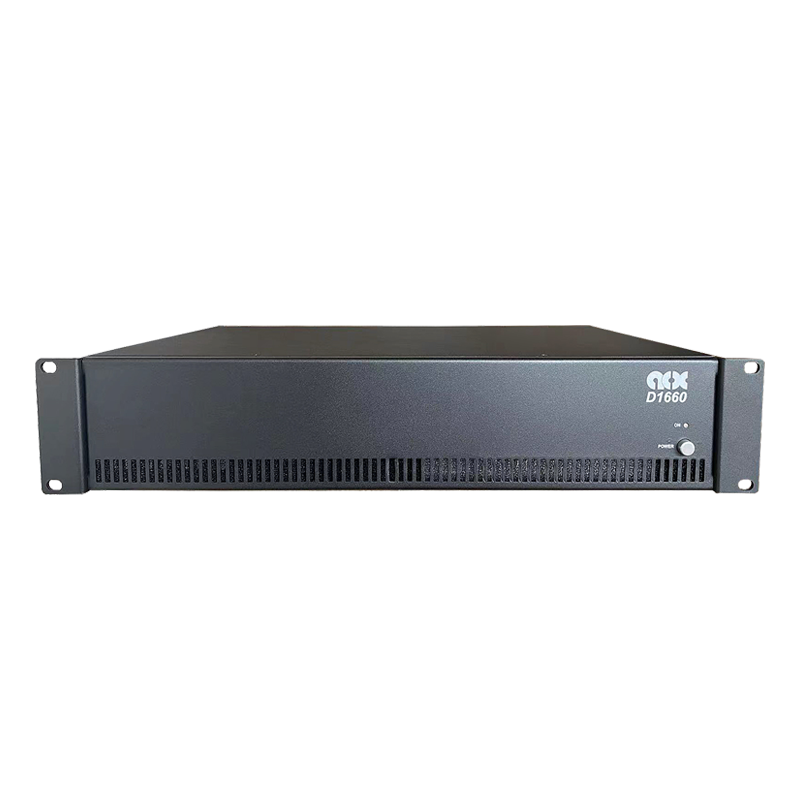

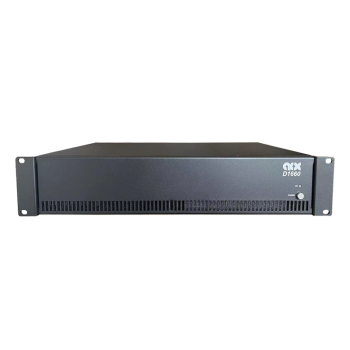

TheD1660 is a 16-channel amplifier, power of 60w 4 Ohm impedance. Practically speaking, they are simple and easy to install, and can offer a perfect solution for multi-zone.

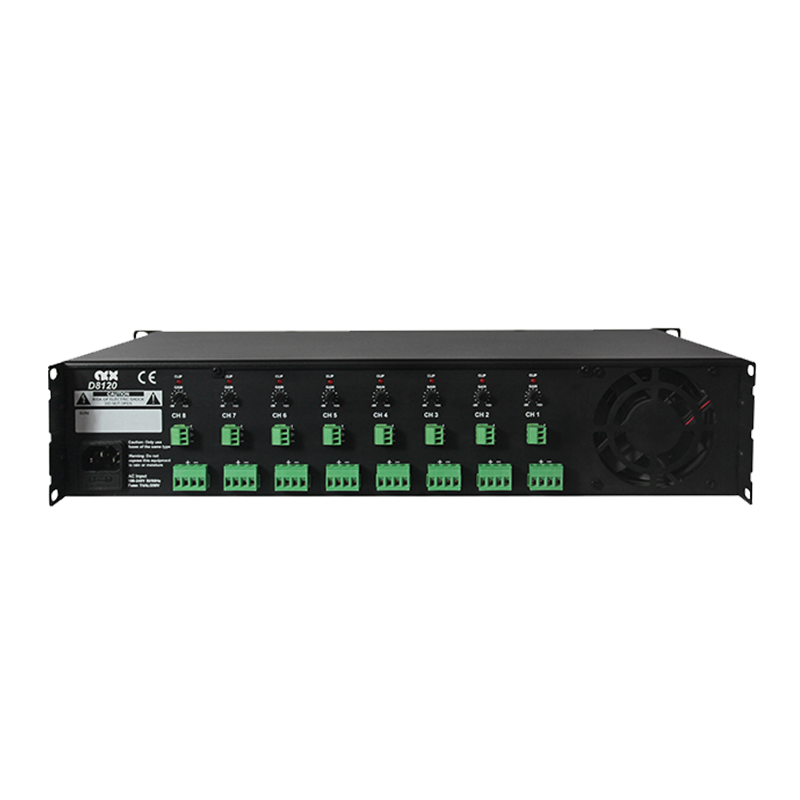

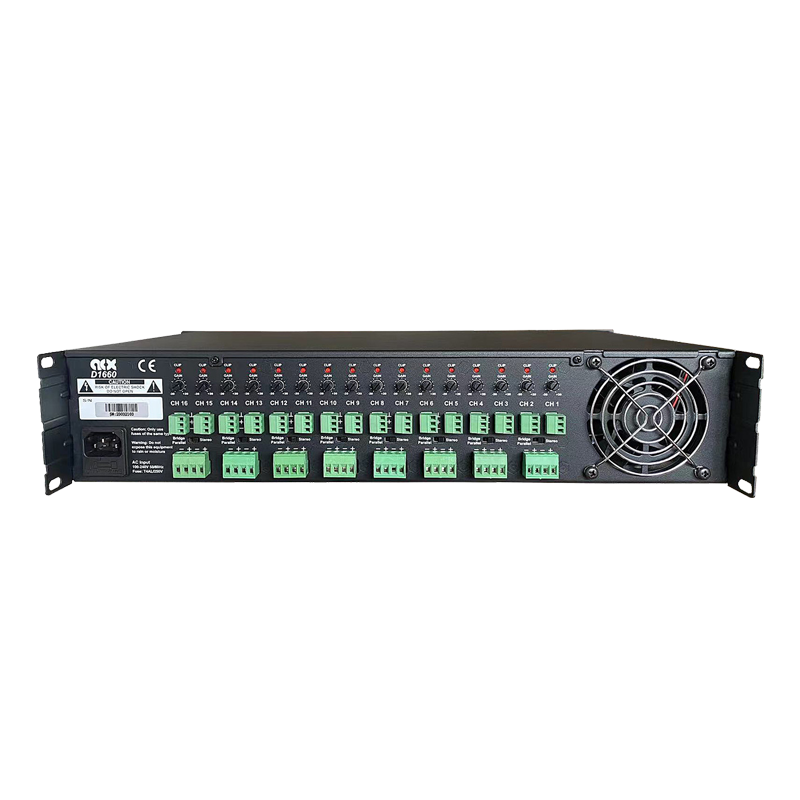

All input and output ports use the Phoenix interface to balance the input signal. Each channel has an independent volume knob and a switch which can select stereo / bridge to avoid signal interference when assigning input signals. Both also come with a built-in secure system, when the protection light glows, the device enters protection mode to preventing short circuiting overheating, overload and limiting the signal output.
Available as the 8 analog in 8 speaker out D8120, and the 16 analog and 16 speaker out D1660.
| MODEL | D8120 | D1660 |
| Number of Channels | 8 analog In 8 speaker Out | 16 analog In 16 speaker Out |
| Input Port | Phoenix | Phoenix |
| Output Port | Phoenix | Phoenix |
| Output power(1%THD+N,1kHz @42 | 120Wx8 | 60Wx16 |
| Output power(1%THD+N,1kHz @8Q | 60Wx8 | 30Wx16 |
| Total system efficiency (2x250W @82 | 88% | 88% |
| Peak Output Current | 9.2A | 9.2A |
| THD+N (1kHz @1W) | 0.1% | 0.1% |
| Dynamic range | 110dB(A) | 110dB(A) |
| dle Noise | 100μV(A | 100μV(A) |
| Output impedance(1kHz) | 200mΩ | 200mΩ |
| Main input voltage | 90VAC-240VAC | 90VAC-240VAC |
| Power Supply | IEC | IEC |
| Standby consumption | / | / |
| Dimension | 483x325x88mm | 483x325x88mm |
| Weight | 8.5kg | 8.6kg |
