D8-TBOX
Size matters sometimes as the D8-Tbox is the line transformer unit capable of low-impedance power amplifiers to be used across a large venue, through several PA systems while maintaining a constant voltage.

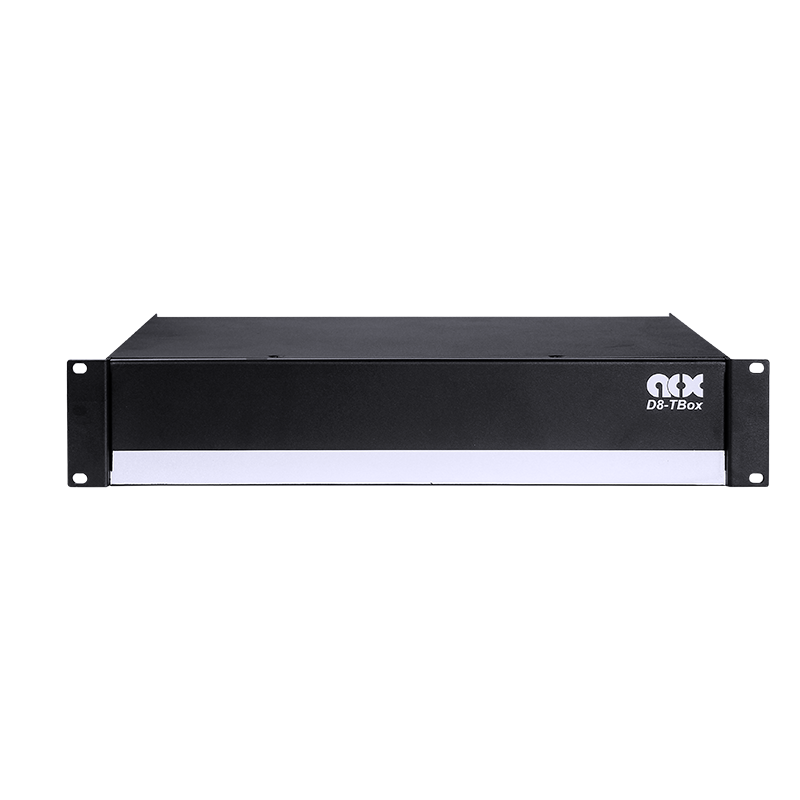

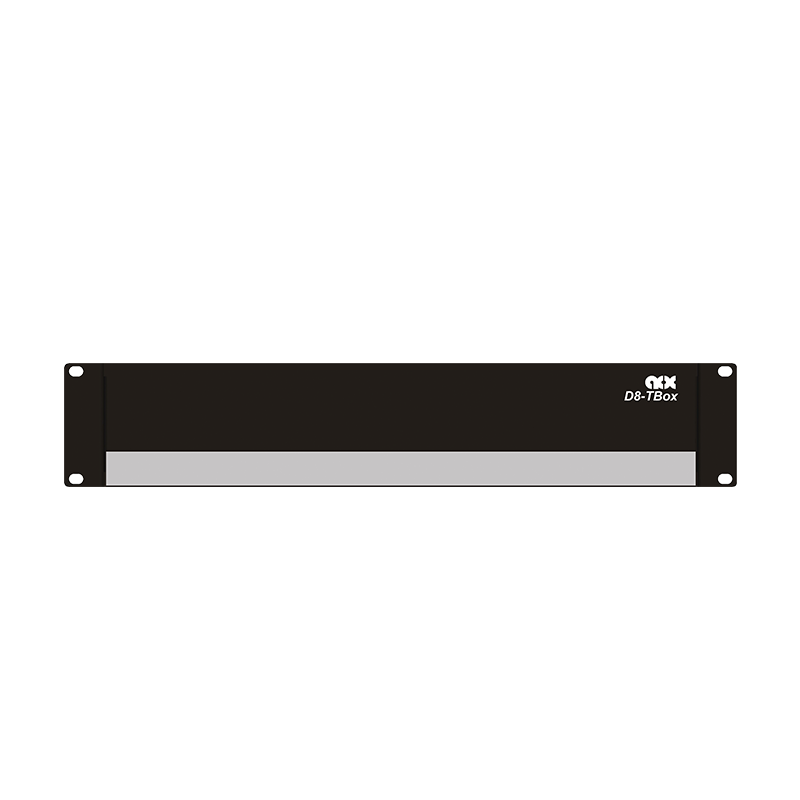

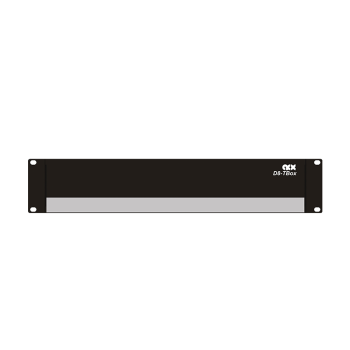

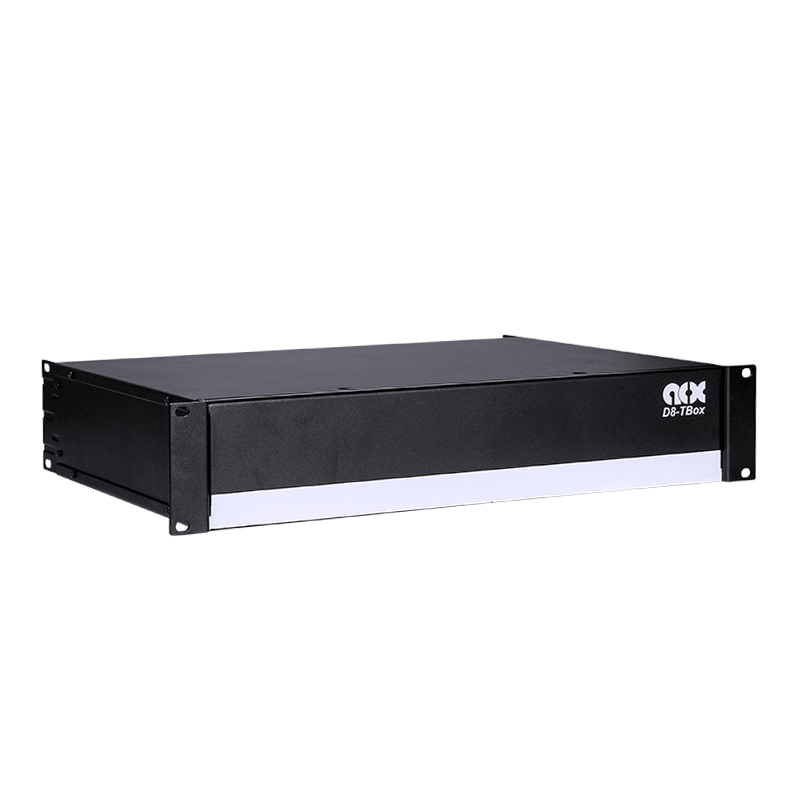

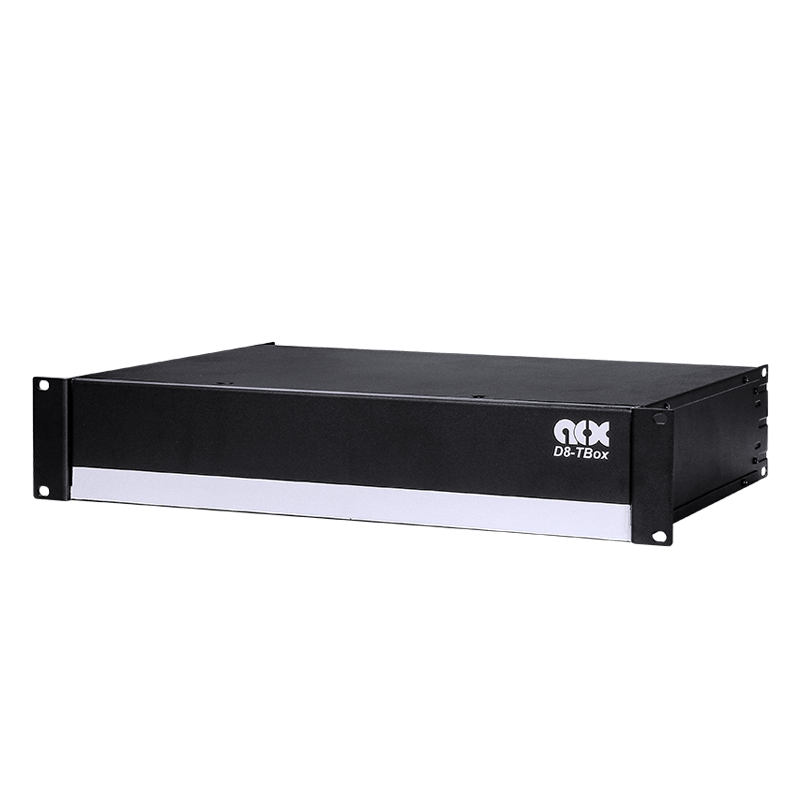

The D8-TBox is a line transformer unit, consisting of eight toroidal line transformers, allowing low-impedance power amplifiers to be used for powering large public address audio systems with constant voltage levels of 100 Volt, 70 Volt and 50 Volt.

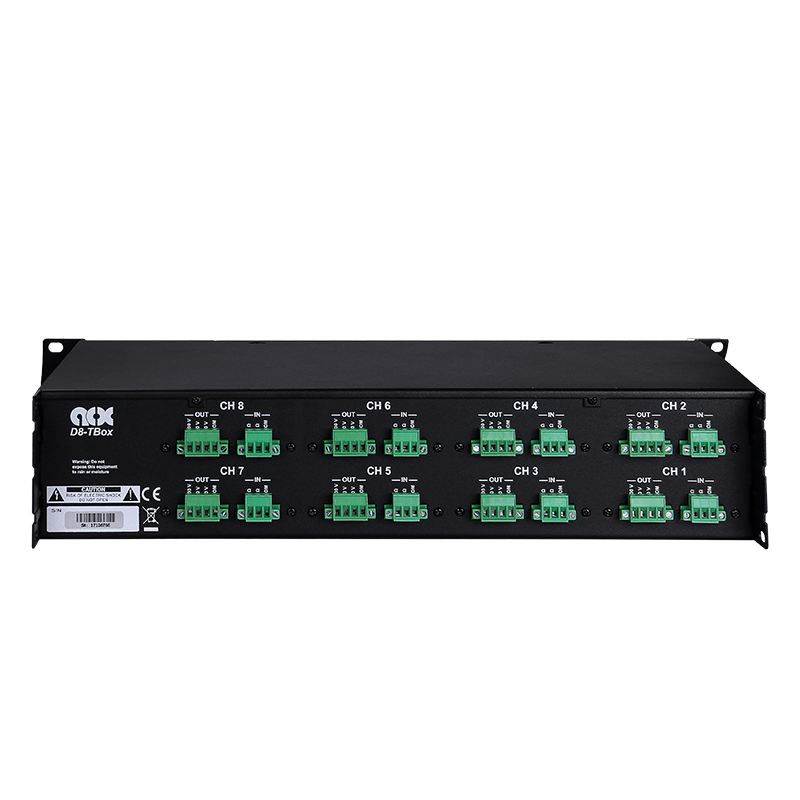

Each line transformer has a rated power of 120 Watt, with an input impedance selectable between 4 Ohm and 8 Ohm. The secondary side of the transformer has power taps for use in 100 Volt, 70 Volt and 50 Volt audio distribution systems. The line transformer is housed in a solid 19°± rack mounting with a height of two units rackspace. The connectors for both in and output are performed using reliable Euro - Terminal blocks.
| MODEL | D8-TBOX |
| Output Power | 8*120W |
| Output Resistance at 100V | 83.3Ω |
| Output Resistance at 70V | 41.7Ω |
| Output Resistance at 50V | 20.8Ω |
| Frequency Response Range | 20Hz-20kHZ |
| Height of the rack | 2U |
| Dimension | 482x322x88cm |
| Weight | 21kg |
