Low Distortion, and an active bass power output of up to 500W@40 makes these speakers the perfect way to expand the range of bass with the other series of column speakers, while also being easy to set up.

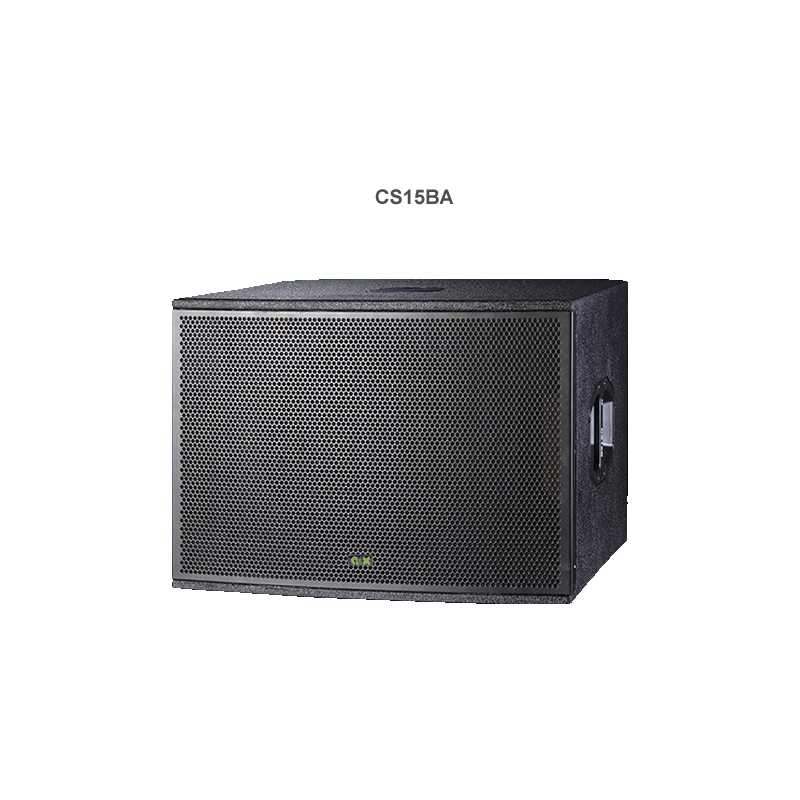

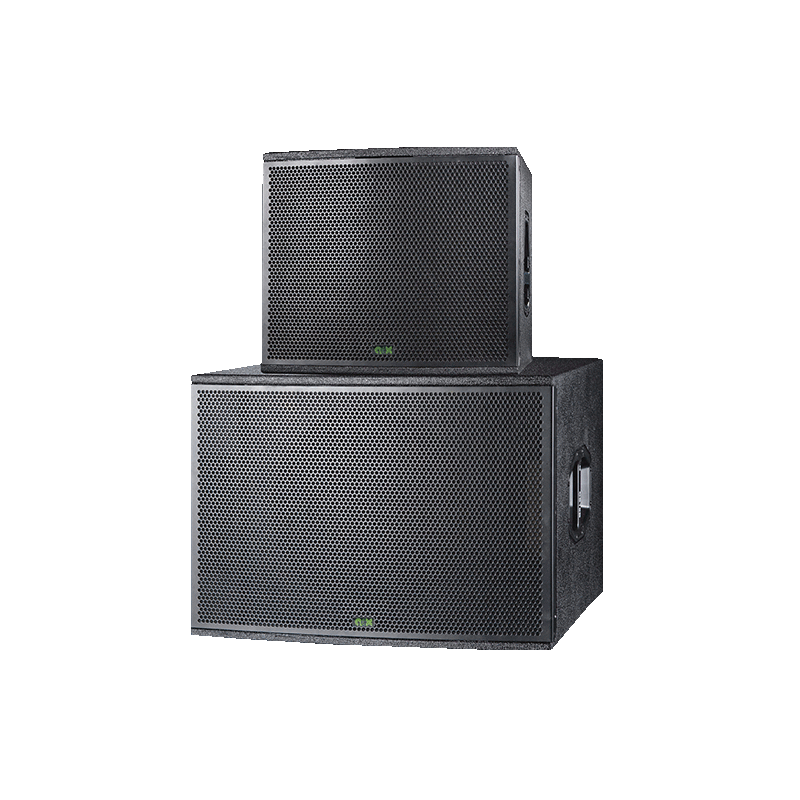

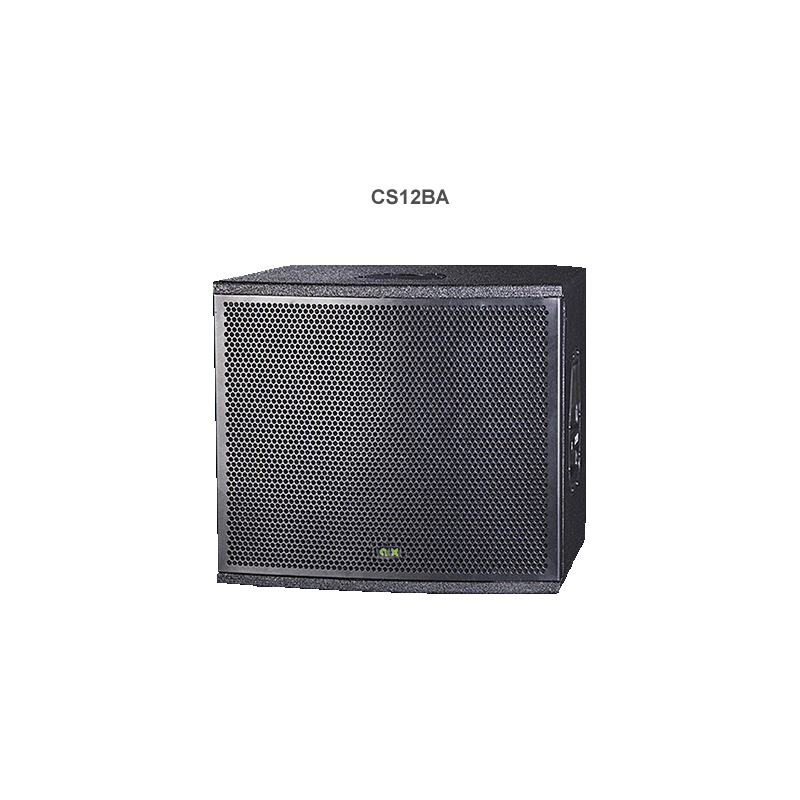

Comes in 2 models, the CS12BA, and CS15BA.
Built-in two Class D amplifiers with high efficiency and very low distortion. This series possess active bass power output, letting you drive up the performance to 500W@40. This speaker offers smooth, and efficient audio performance while making setup an absolute breeze.

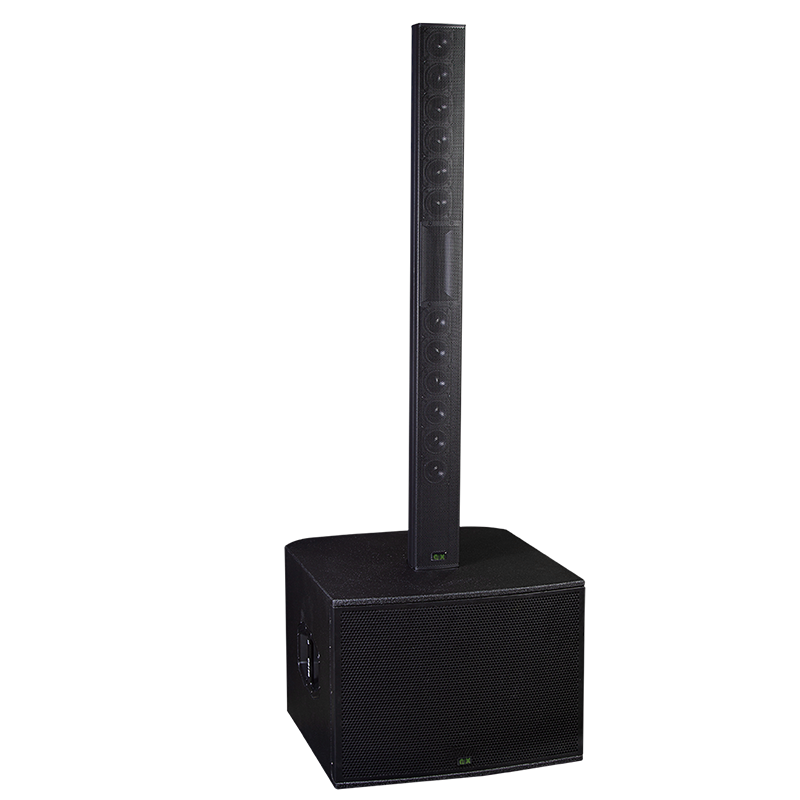

These subwoofers pair perfectly with ACX's line of CS speakers, letting you get the most out of audio performance in virtually every way possible. With the Class D amplifier, the built-in satellite-channel power output can drive multiple full-frequency coluns. This design not only helps to simplify the setup, but reduces on cost and provides a better solution to setups on the go.
Ideal for projects like outdoor bands, concert halls, and live shows, music bars and more.
| Mode | CS12BA | CS15BA |
| components | 1×12"bass | 1×15"bass |
| Freg.Resp | 45Hz-250Hz | 42Hz-200Hz |
| Max SPL | 122dB | 125dB |
| Power Amp | 500W | 500W |
| Sat.Frep.Resp | 110Hz-20KHz | 110Hz-20KHz |
| Sat.Power | 1×500W @4Q | 1×500W @4Ω |
| Power | 90V-240V AC | 90V-240V AC |
| Input | XLR×17PowerCON×1 | XLR×1/PowerCON×1 |
| Output | Spesk ON×1 PowerCON x1 | Spesk ON×1 PowerCON×1 |
| Color | Black | Black |
| Accessories | Chassis stand | Chassis stand |
| W×D×H(mm) | 480×525×425 | 660×690×480 |
| Net Weight | 27.9kg | 34.8kg |
