Coming with a built-in integrated Class H amplifier, feel the sound going through your body with the CSBA 8', capable of a frequency response of 20Hz-120Hz (士10dB) including two satellite channels of power output, reaching up to 160 W@40 of energy.
Available as the model CSBA.
When you need the sound to not only be heard, but felt. The CSBA 8" Sub-woofer offers a powerful option with its a built-in integrated Class H amplifier, creating sound so intense you can feel your heart beating out of your chest.
It has a flat frequency response of 38-Hz - 120Hz (±10 10dB) including two satellite channels of power output with up to 160w @4Ω of energy.

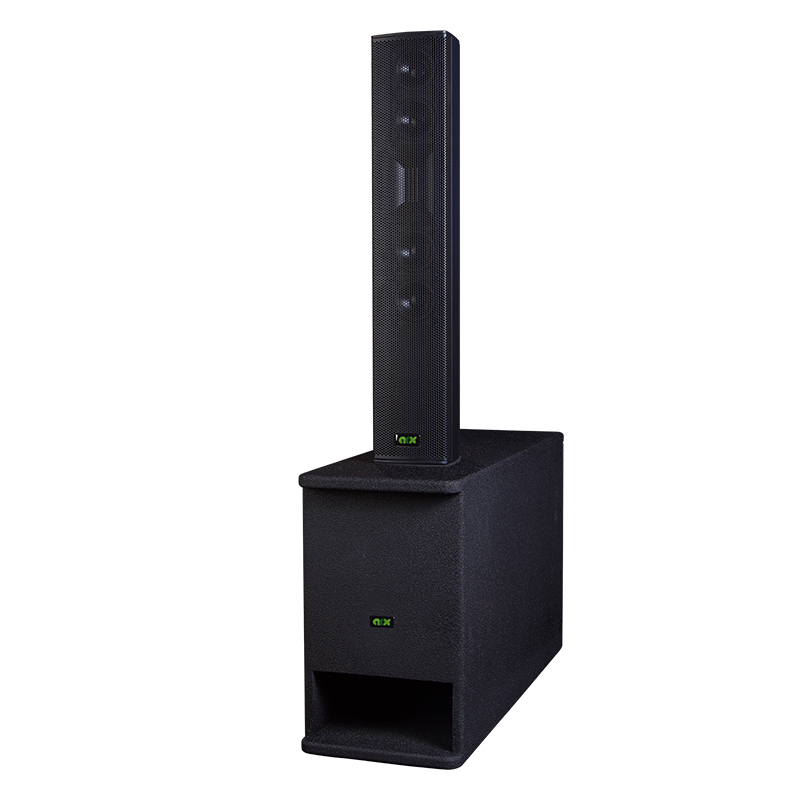

Coming in at 1x8" the active subwoofer fulfills the need for full-length frequency performance. ACX has developed subwoofers to pair with its series of column speakers, getting the most out of audio performance in virtually every possible way.
| Model | CSBA |
| components | 1×8"bass |
| Freq.Resp | 20Hz -120Hz |
| Max SPL | 115dB |
| Power Amp | 200W |
| Sat.Frep.Resp | 110Hz-20KHz |
| Sat.Power | 2×160W @4Ω |
| Power | 115V/230V AC |
| Input | Euro Block×2/RJ45×1 |
| Output | Euro Block ×2 |
| Color | Black |
| Accessories | Chassis stand |
| W×D×H(mm) | 250×718×419 |
| Net Weight | 27kg |
