CL/CLS Series

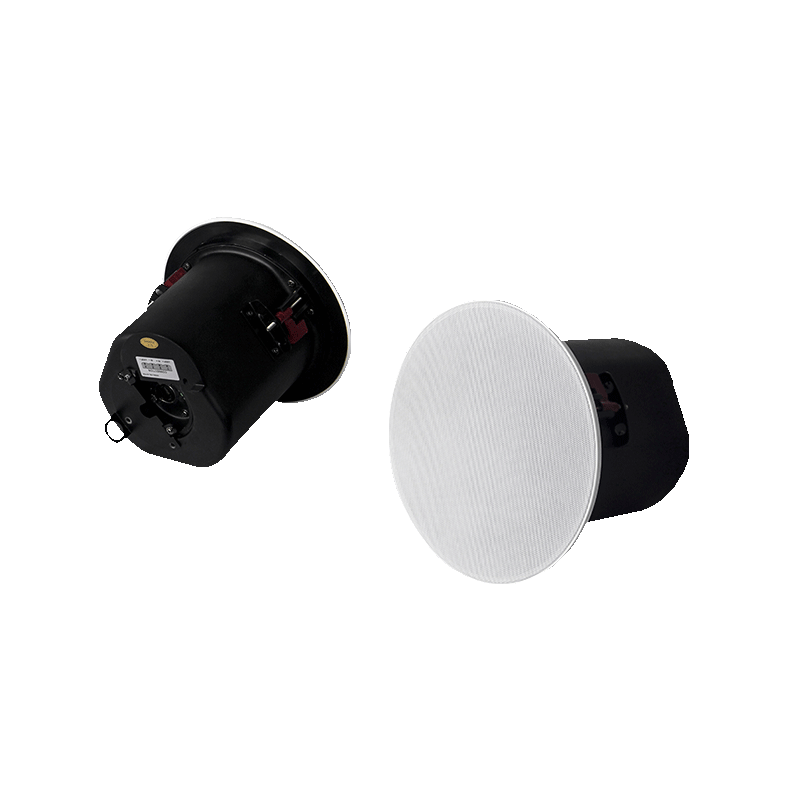

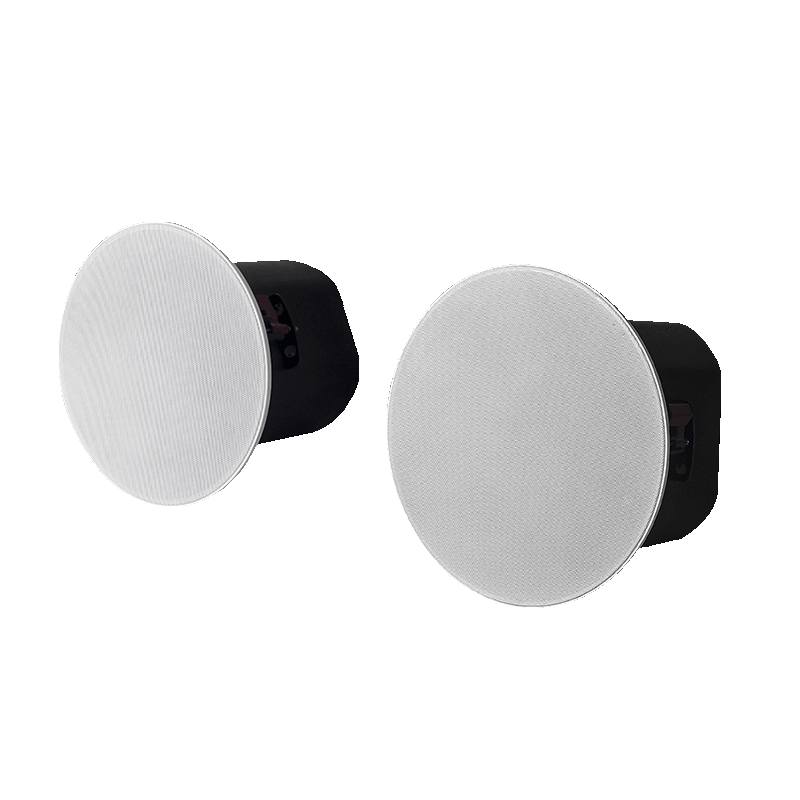

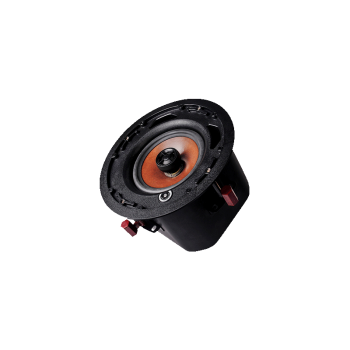

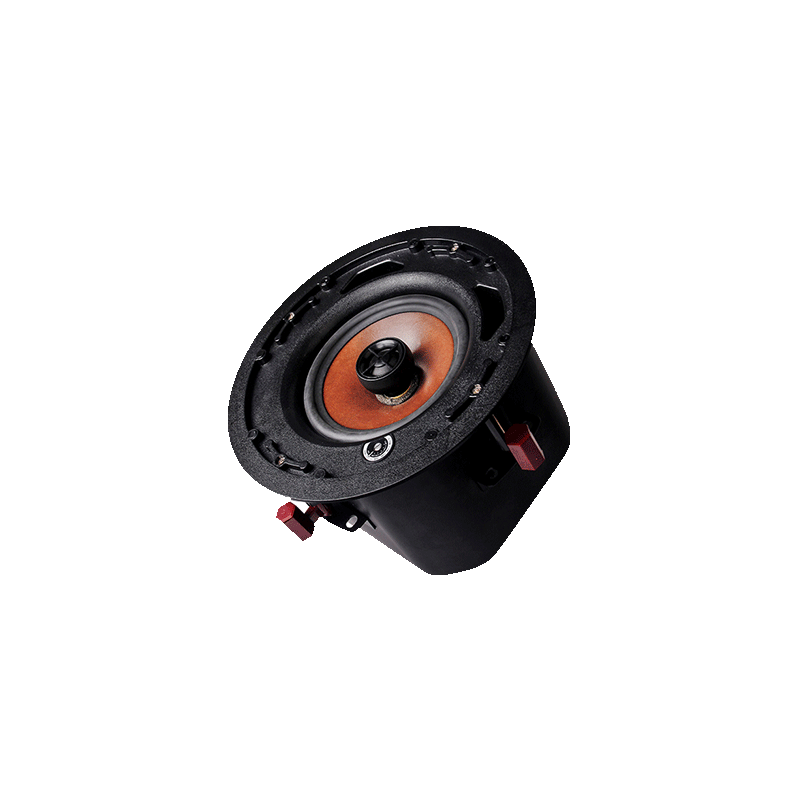

CL Dante Ceiling Speaker

Ceiling speakers that provide the perfect level of background music, broadcasts, conferences, or other distributed systems. Now integrated with the Dante network audio input interface, and controllable through ACX's design softwares.
Comes in the CL4.0AN, and CL6.5AN.

These CL4.0 and CL6.5 speakers come integrated with the Dante network audio input interface, and POE-powered dual-channel class D 2 x 45W Amplifiers.

These can be controlled by ACX's design software, and paired with the Neutrino series that have Dante integration. The speakers are inconspicuous in its design, while providing great sound quality and being easily controllable through the use of the Dante network. The CL4.0 and CL6.5 can select 100V/700V or 8Ω low resistance input through the switch, and has a magnetic iron cover making it easy to disassemble if needed.

Depending on the model, these speakers range from 2.25kg or 2.6kg, and a frequency response of 110-20kHz or 60-20kHz


  ModeCL   4.0ANCL   6.5AN
  components

LOW 4"

HIGH 3/4"

LOW 6.5"

HIGH 1"

  Sensitivity88Db88Db
  Freg.Resp200-18K Hz130-17K Hz
  Max SPL101dB103dB
  Coverage150°150°
  Maximum Power30W45W
  Rated Power20W30W
  Power Amp2×45W(POE++)2×45W(POE++)
  ConnectorsInput Port:Dante x1
Output Port:Phoenix 4PIN
  Power InputPoEPoE
Product Color (Mesh Cover)whitewhite
Product Color (Back Shell)blackblack
  Hole For MountingΦ171Φ235
  Dim.(mm)Φ204x165Φ267x162
  Net Weight2.2kg3.34kg
Operating Temperature-25°C~+55°C-25°C~+55°C
Storaging Temperature-40°C~+70°C-40°C~+70°C
Relative Humidity<95%<95%
