CL/CLS Series

CL Ceiling Speaker

Ceiling speakers with a cavity design that offers excellent dynamics and sound quality. Perfect for those looking for speakers to provide the perfect level of background music, broadcasts, conferences, or other distributed systems.
Comes in the CL4.0, and CL6.5.

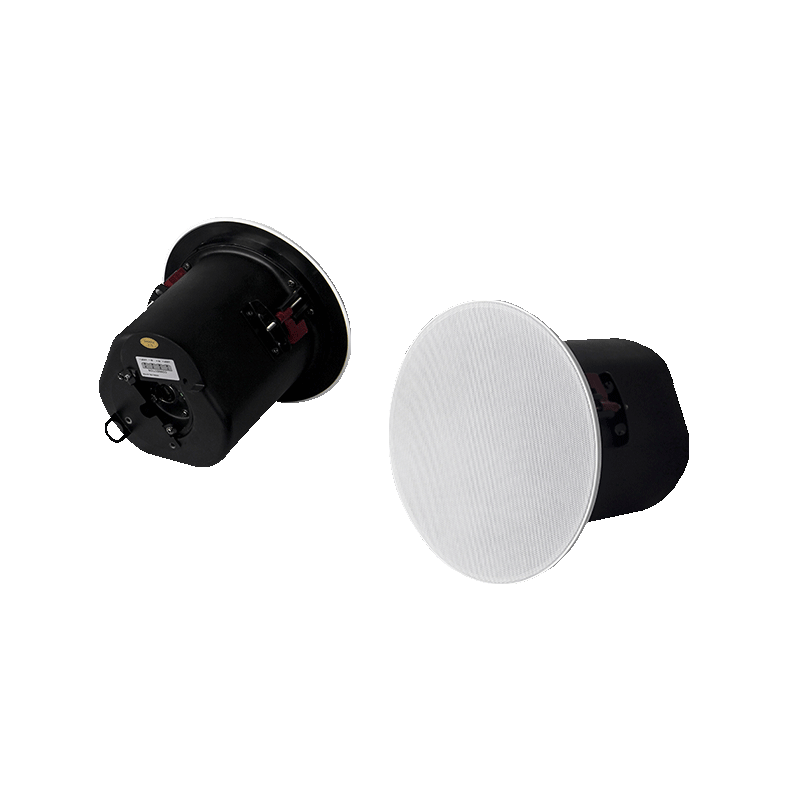

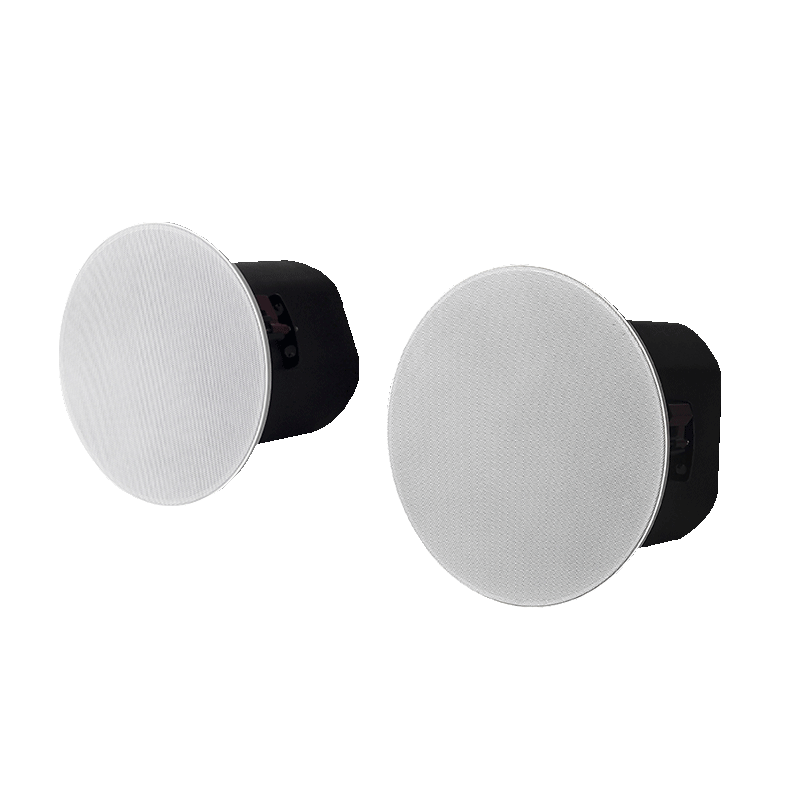

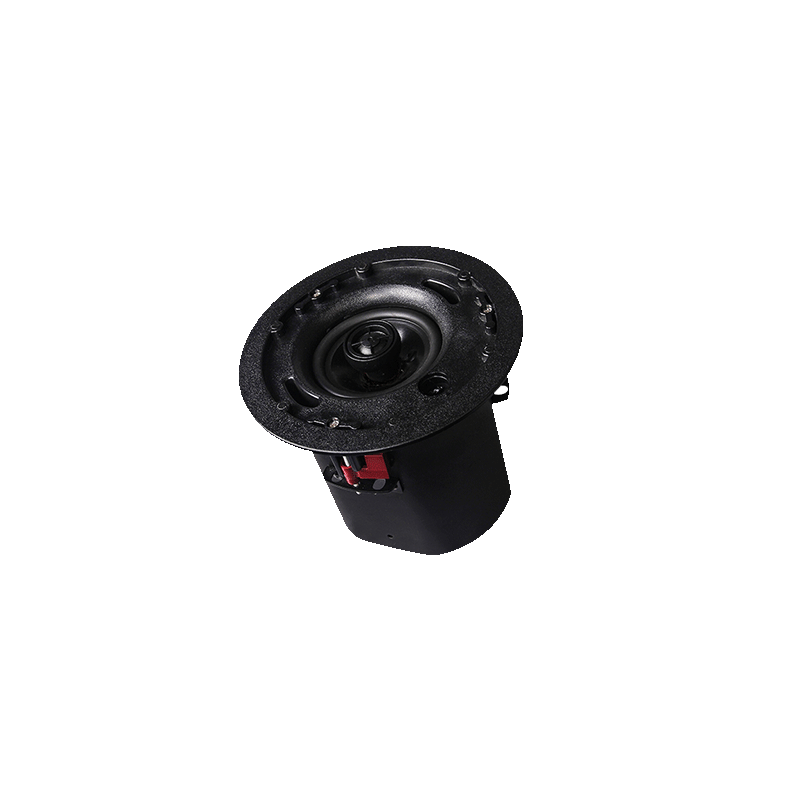

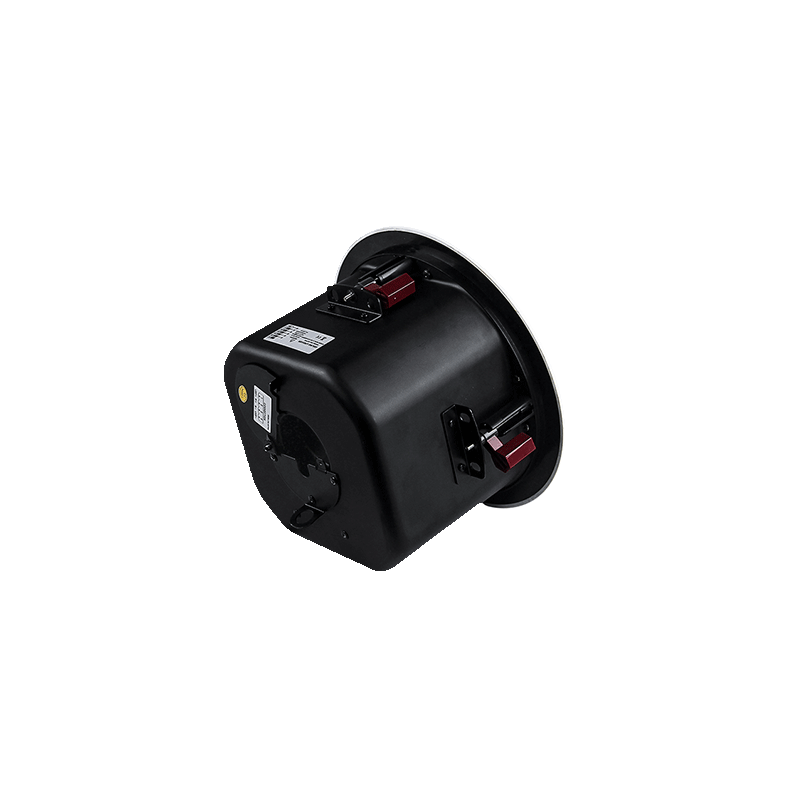

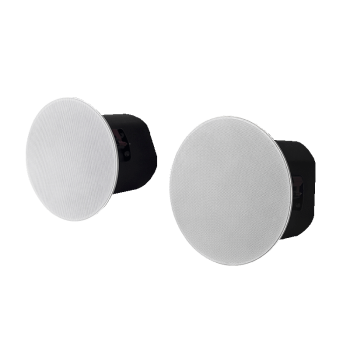

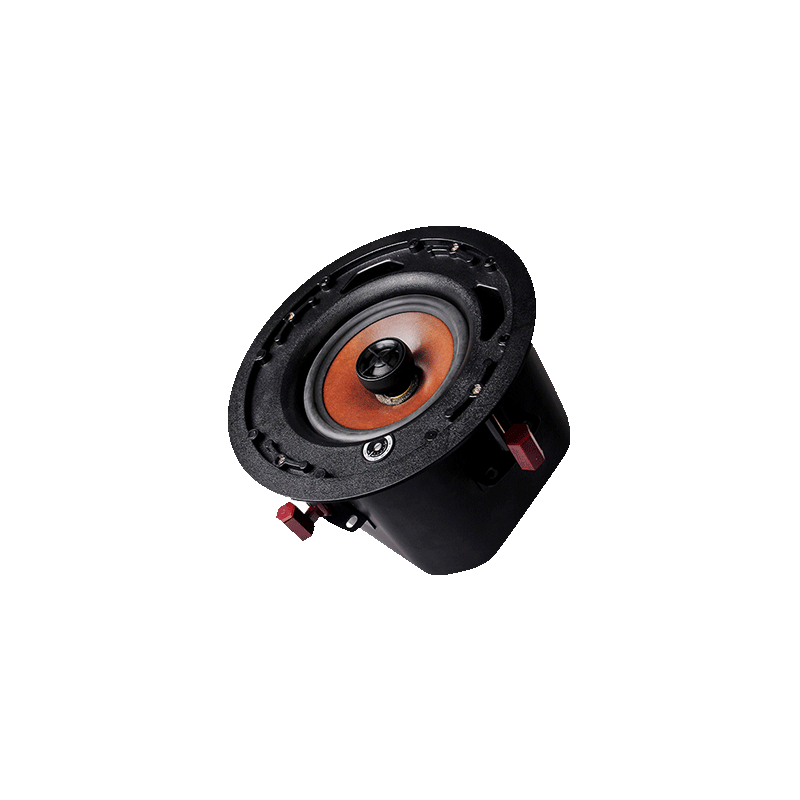

The CL4.0 and CL6.5 ceiling speakers have a cavity design giving them excellent dynamics and sound quality.

These can be used with ACX XPower series Class D switching power amplifiers, perfect for those needing high quality background music or for public broadcasts, conference room expansions, and other distributed systems.

Depending on the model, these speakers range from 2.55kg or 2.9 kg, and a frequency response of 110 -20 kHz or 60-20 kHz.

 ModelCL 4.0CL 6.5
 Horn Unit Size

LOW 4"

HIGH 3/4"

LOW 6.5"

HIGH 1"

 Sensitivity88 Db88 Db
 Maximum Power30W45W
 Rated Power20W30W
 Freq.Resp200 -18K Hz130-17K Hz
 Max SPL101dB103dB
 Coverage150°150°
 Power Tap 100V:2.5W/5W/10W/20W
  70V:1.25W/2.5W/5W/20W
 100V:3.75W/7.5W/15W/30W
70V:1.8W/3.75W/7.5W/15W/30W
 ConnectorsEU 4 Pin PhoenixEU 4 Pin Phoenix
 ColorWhiteWhite
 Hole For MountingΦ171Φ235
 Dim.(mm)Φ204x165Φ267x162
 Product Weight2.2 kg3.34 kg
Operating Temperature-25°C~+55°C-25°C~+55°C
Storaging Temperature-40°C~+70°C-40°C~+70°C
Relative Humidity<95%<95%
