Centro

Centro-SM1

At ACX we have a passion for digital audio with a focus on audio performance. Our Neutrino and other processor series processors are examples of our passion and focus. To provide additional systems approach flexibility we designed the Centro-SM1 DSP Site Manager.
The Centro-SM1 site manager gives additional functinality to our various processors such as web-based control for devices including iOS & Andoid, Firefox/ Safari/etc browsers; Third Party Control Interpreter (simplifieses programming of third party control systems);
RS-232 Connection; Scheduler (date and time event scheduling); and System Back-up.
Some DSP project designs may not require any of this added functionality. So by not including them in the first place in our processors such as the Neutrion, we maximize its value for those consumers. in the first place we maximize their value. For those DSP project designs that do require some or all of our site managers added functionality, all are provided by the Centro-SM1 in a single rack space accessory.

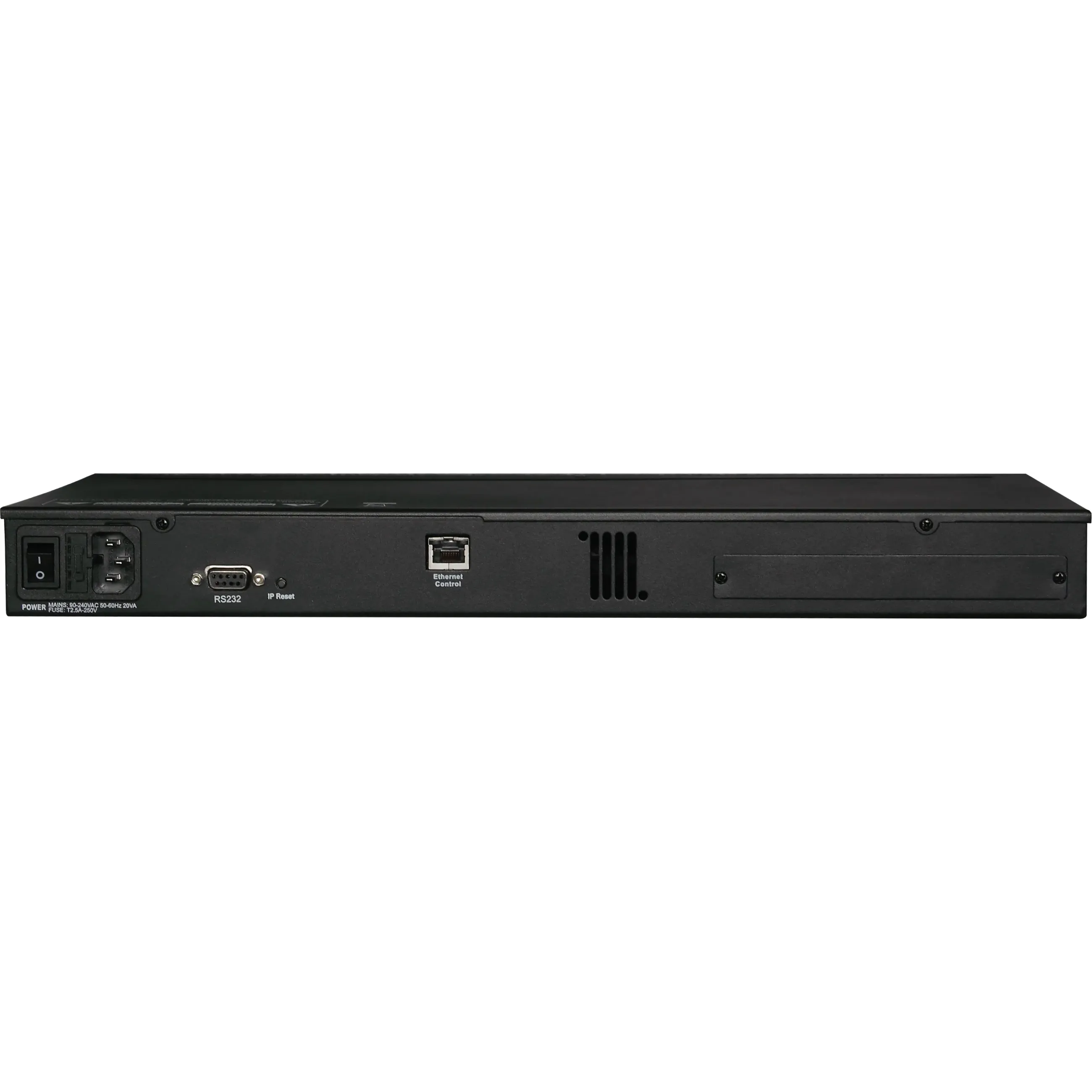

The Centro-SM1 Site Manager is a one rack space device with an Ethernet Connection and an RS-232 connection on the rear of the

unit.  It is connected into the DSP system network along with all other processors via Ethernet cable and configured using the processors NeuConsole software GUI. Once connected, the Centro-SM1 site manager provides the selection and configuration of each of the units four functions – Browser  Control, Third Party Control Interpreter, Scheduler, and System Back-up. The Centro-SM1 Browser Control allows users to control  our processors with any popular smart phone or tablet (including iPhone, iPad, Mac PC’s, Android devices, and Firefox/Safari/etc   browsers).  The Centro-SM1 Third Party Control Interpreter feature simplifies third party (AMX, Crestron, etc) control programming of processors, etc...  The Centro-SM1 Scheduler provides the ability to manage the processors presets using a date and time event schedule, and the System Backup feature provides a convenient secondary location and procedure to back-up all your important DSP project design files and event logs.

The device can be used with virtually any fixed audio instasllation that innately does not include browser controls or third party control interpreters, or for those that require a system backup.


Front Panel
Status LED Power and Network Data
Connectors
Ethernet Network I/O RJ45 (CAT5)
RS232 DB-9 Female
Power Standard IEC Socket
General
Power 90-240 VAC (50-60Hz)
Dimensions 19”x1.75”x9” (483x44x229mm)
Ventilation Rear exhaust fan Side vents(Do not block)
Rackmount 1 RU vent between units
Weight8 lbs / 4 kg


Warranty 2 years Parts and Labour
