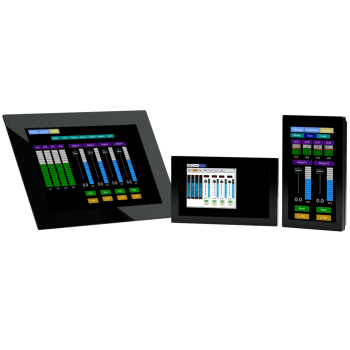

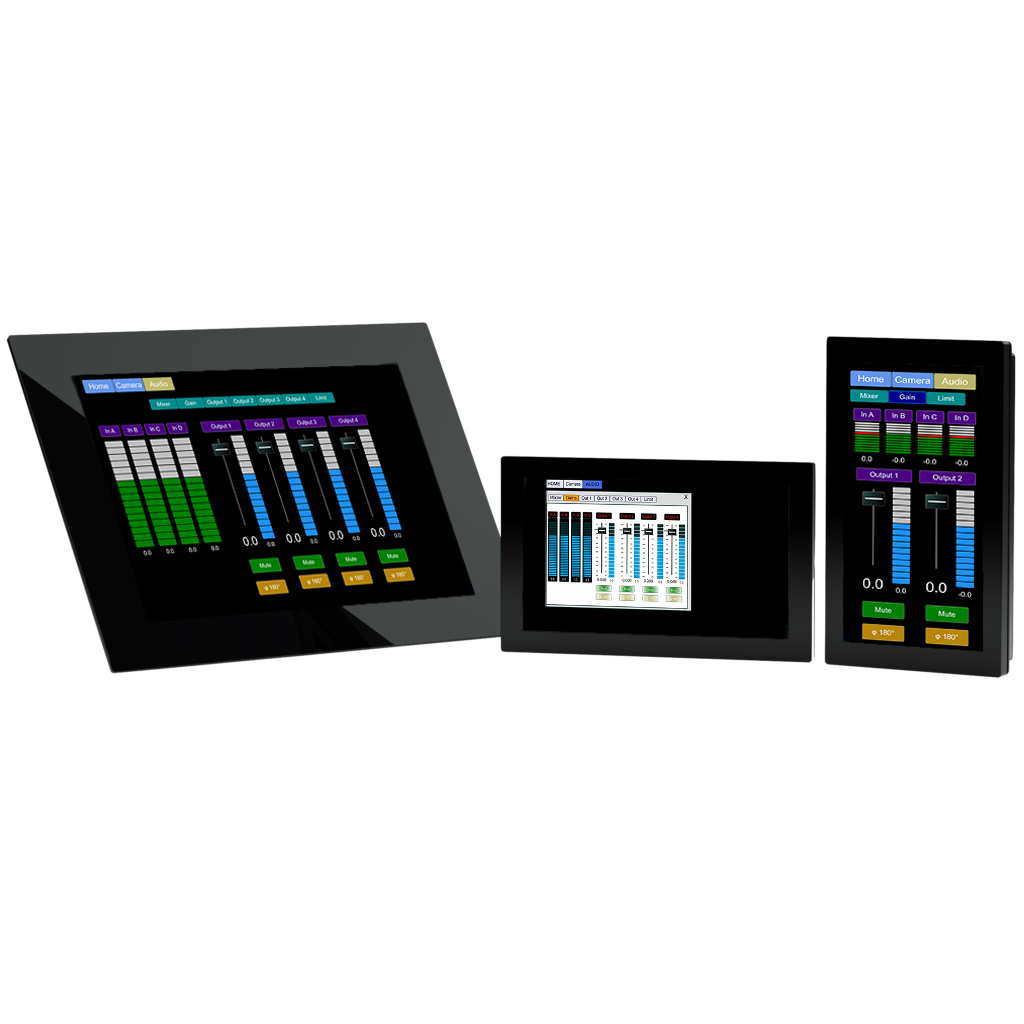

TP is a touchscreen controller developed by ACX for audio processing. TP has two products: a 5-inch touchscreen remote control panel with HD 1280 x 720 high resolution, and an 8-inch touchscreen remote control panel with HD 1280 x 800 high resolution.
Available in 5-inch, and 8-inch touchscreen sizes.
The product has a brand new high-quality touch control series, which can provide simple and intuitive command functions for users, with low power consumption, excellent off-axis observation, high definition and high contrast functions. It supports password protection for multiple pages, as well as switching, selection, preset and command at any level. With the ACXConsole software, users can drag and drop DSP parameters or preset and adjust controller,layout and text size as required.
The product is connected to the network through a CAT5/6RJ45, with the DHCP IP address automatic assignment function. It is connected to the same network segment with Solaro equipment, and can update the display screen at any time without stopping the machine. It supports IEEE802.3af power supply standard, is compatible with network switches and uses 12VDC external power supply (not included).
The device sports an HD 16:9 screen with five point touch and multi language support and adjustable screen brightness. It can naturally be oriented and installed vertically or horizontally depending on user needs.
Product is also controllable using the ACXTouch app on Android devices, with iOS support coming soon.
| Model | TP-5 | TP-8 |
| Screen size | 5" touch screenScreen size | 8” touch screen |
| Display | HD 1280 x720 resolution | HD 1280 x800 resolution |
| Connectors | RJ45 Ethernet, External power supply(not included) | RJ45 Ethernet, External power supply(not included) |
| Power | Power over Ethernet (PoE) or 24VDCexternal power supply (not included) | Power over Ethernet (PoE) or 24VDCexternal power supply (not included) |
| Weight | 0.2kg | 0.5kg |
| Wall mount | Mount onto US/EU/UK 1-gang back boxor low voltage bracket using the includedTP5 wall-mount bracket | Mount onto US 2-gang back box orlow voltage bracket using the includedTP8 wall-mount bracket |
| Rack mount | Optional 2RU rack mount panel with1-gang threaded cut out | Optional 4RU rack mount panel with2-gang threaded cut out |
| Mountingorientation | Portrait or landscape (user-defined) | Portrait or landscape (user-defined) |
| Dimensions | 5.2”x3.2”x1.3”(132x81x34mm) | 8.7”x5.8”x1.5”(223x149x38mm) |
