The CLS high quality speakers series with similar features but enhanced with PoE++ and Dante to further simplify installation, and usability in various locations such as schools, departments stores, etc…
Available as the CLS6.5AN++ and CLS 8.0AN++

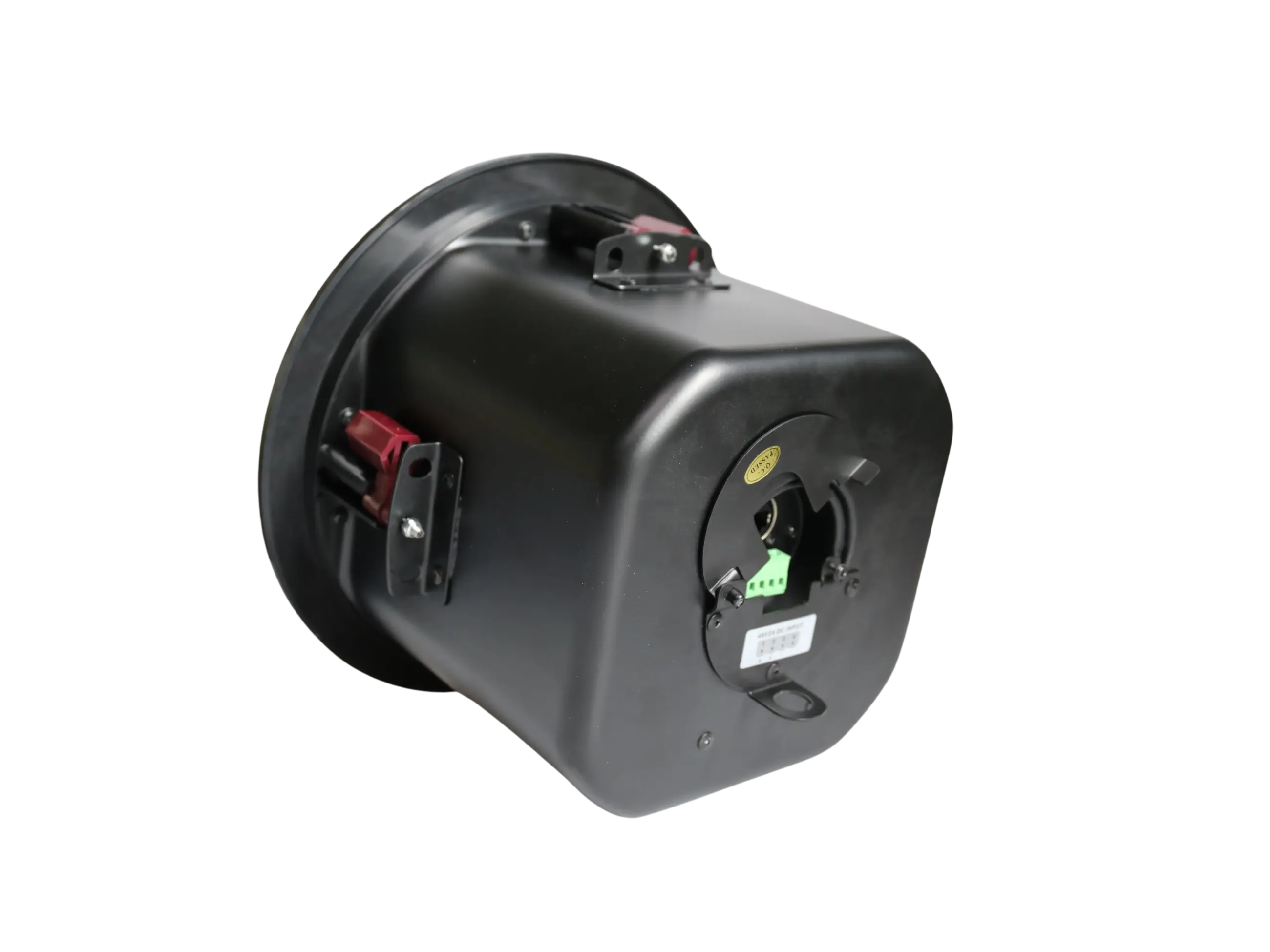

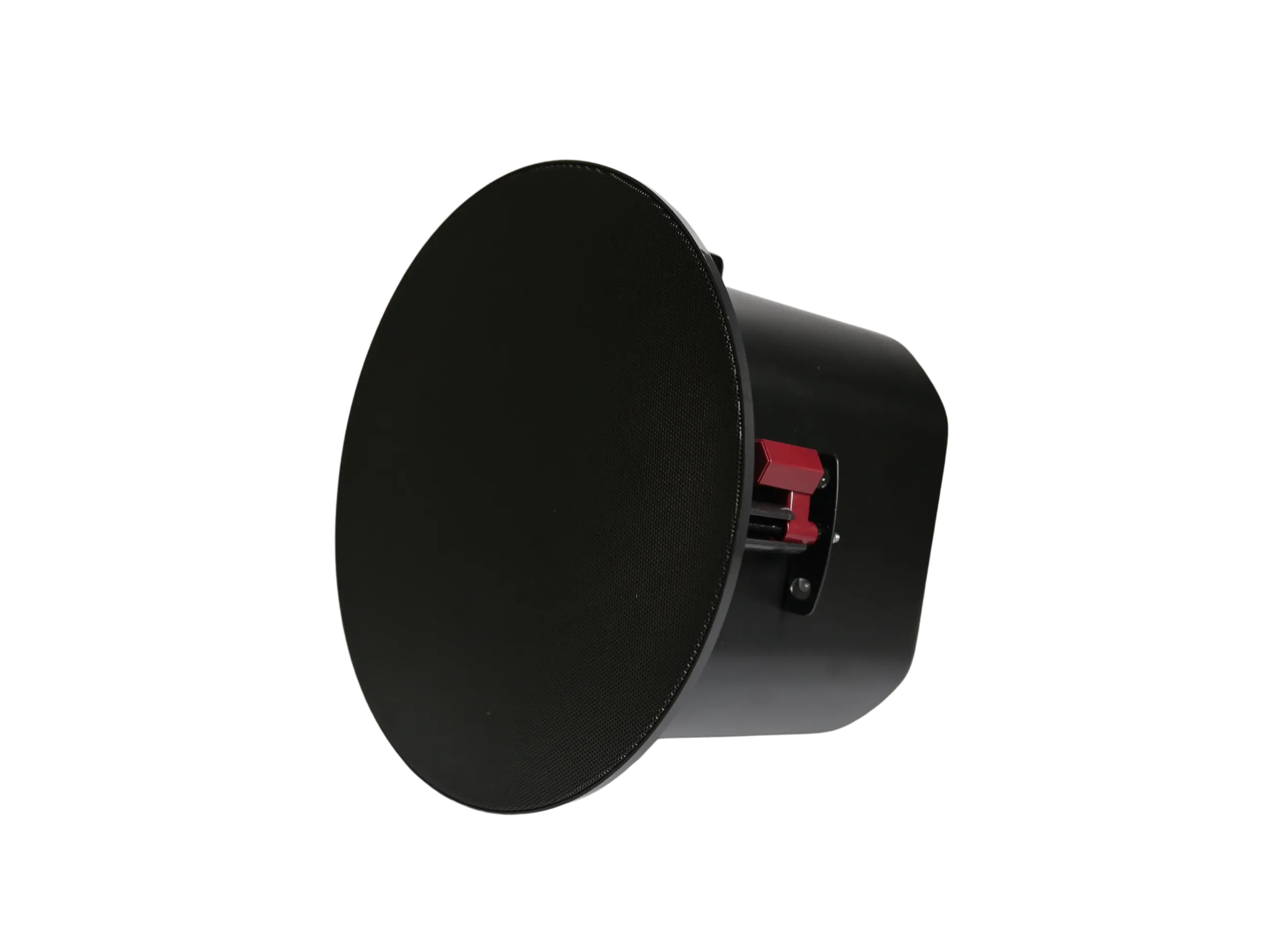

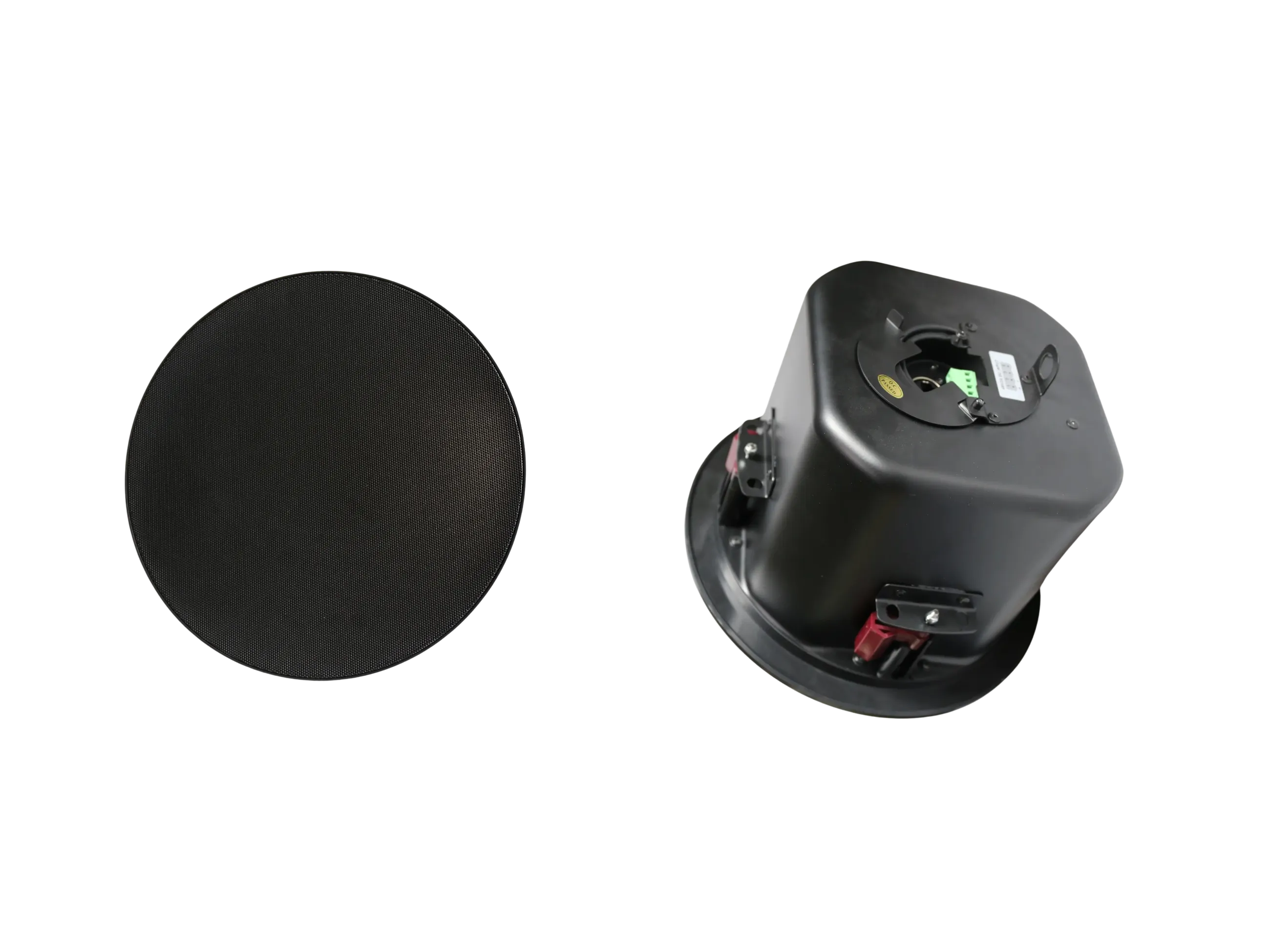

The CLS6.5AN++ and CLS8.0AN++ high-quality ceiling speakers are made with interior components and a frame designed perfectly to compliment each other. The panel is made with high-strength ABS material, add to that the fact that these active speakers are powered through an RJ45 network port PoE++ Input.
These speakers can be controlled with the ACXConsole or ACXTouch software, and when paired with our brand of processors with dante integration, you can ensure a setup of top-notch speakers that can easily be adjusted with simple commands or wall panels to ensure maximum results, with minimal effort.
Depending on which model, these speakers have a weight of 4.0kg to 5.0 kg, and a frequency response of 80Hz to 20kHz, or 60Hz to 20kHz.
| Model | CLS6.5AN++ | CLS8.0AN++ |
| Horn Unit Size | LOW 6.5" HIGH 1" | LOW 8" HIGH 1" |
| Sensitivity (1m/1W) | 87dB | 89dB |
| Maximum Sound Pressure(1m/70W) | 105dB | 107dB |
| Coverage | 150° | 150° |
| Frequency Response | 80Hz - 20kHz | 60Hz - 20kHz |
| Rated Power | 60W | 60W |
| Power Amp | 70W | 70W |
| Connectors | RJ45 Network Port | RJ45 Network Port |
| Color | white/black | white/black |
| Open Hole Size | Φ240 | Φ290 |
| Product Size | Φ267 x 162 | Φ320 x 245 |
| Baffle/Back Bucket | ABS/Iron | ABS/Iron |
| Mesh Cover | Metal iron mesh | Metal iron mesh |
| Net Weight | 4.0 kg | 5.0 kg |
| Operating Temperature | -20°C~+60°C | -20°C~+60°C |
| Storaging Temperature | -25°C~+70°C | -25°C~+70°C |
| Relative Humidity | <95% | <95% |
